SPECIFICATIONS



Brand Name: SANNCE



Cable Length: 18m

Model Number: N96PBK+I51FQ*16

PCS of Camera: 16pcs

Resolution: 5MP

TV System: NTSC,PAL

Video Input: 16 Channel



Key features:

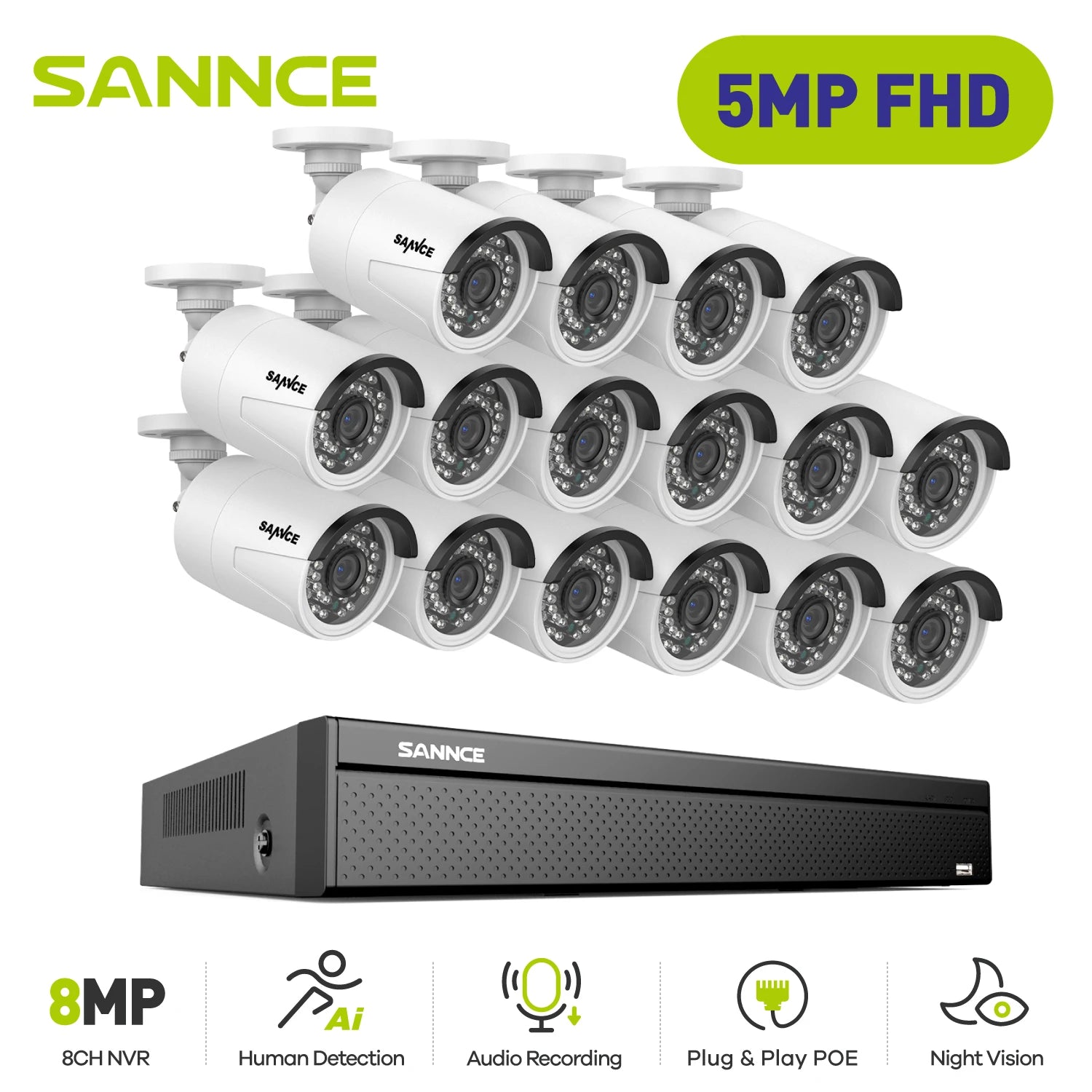

Powerful 16-Channel 4K PoE NVR with Strong Compatibility

This NVR is connectable to 16pcs PoE IP cameras of up to 4K resolution simultaneously, it also works with 5MP/4MP HD SANNCE POE IP Cameras. You can take full advantage of your cameras and have full control over them.

5MP Super HD Clarity Day & Night

These PoE cameras came with powerful 1/2.7" CMOS sensor, digital WDR & DNR, the network security camera captures every detail in stunning 5MP Super HD resolution, regardless of day and night.

Customizable Motion Detection

You can mark out the relevant areas for motion detection to minimize false alerts and save storage space. Besides, if you don’t want others to view certain areas’ recordings, you can effectively block out these areas on each camera.

Smart Motion-Triggered Alerts

Whenever motion detection is triggered in your customized areas, you will receive instant email alerts with snapshots and app alarm pushes even when you’re away. Thus, you can know what happens in your house and take appropriate precautions promptly.

Built-in Mic, pick up audio & ambient sound around

A built-in mic will allow the camera to live stream and record with both video and audio. You may not only see, but also hear clearly what is going on or what happened for more excellent proof in need.

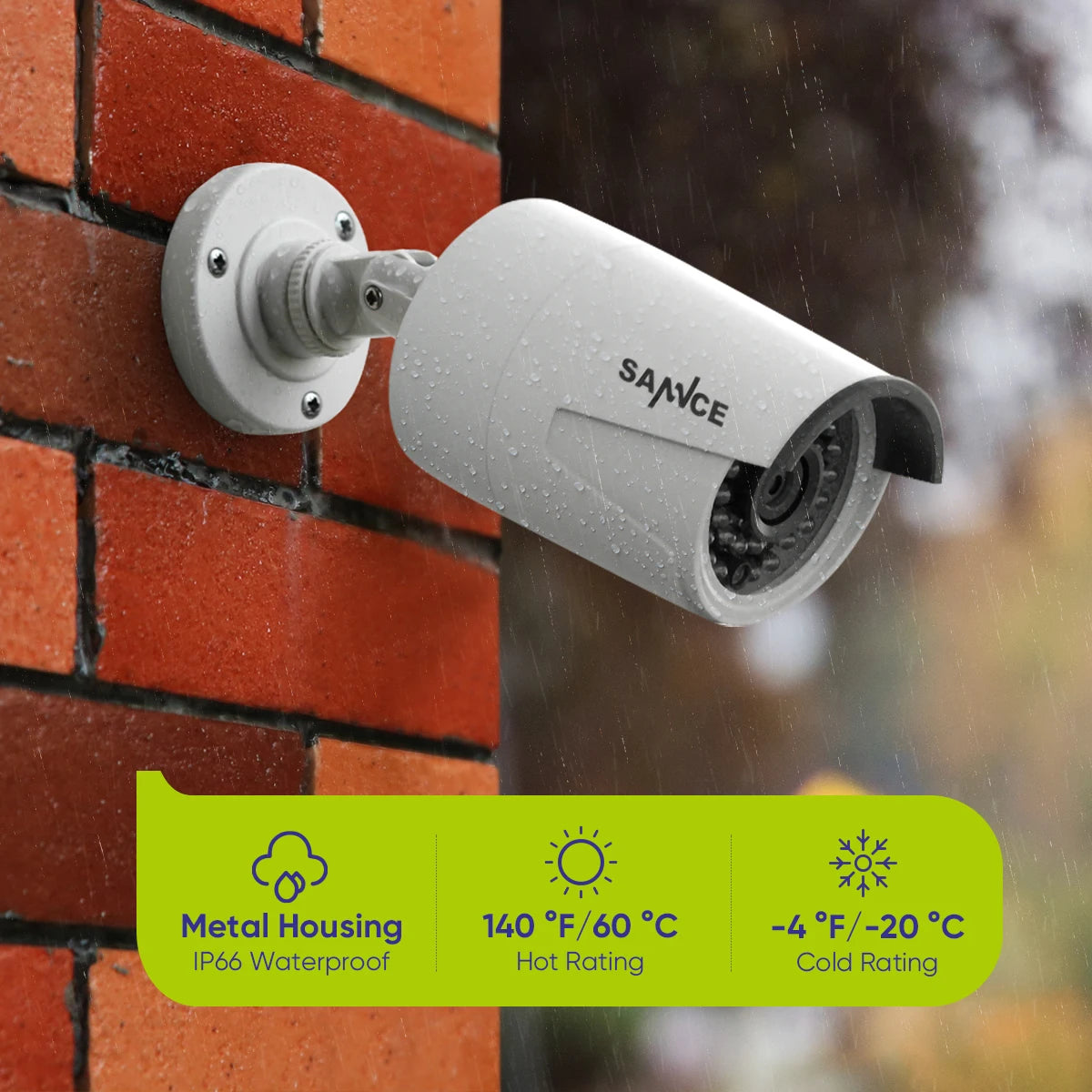

IP66 Waterproof & All-Metal Housing

IP66 waterproof rating ensures this outdoor IP camera braves torrential downpours, freezing snowstorms or broiling climates.

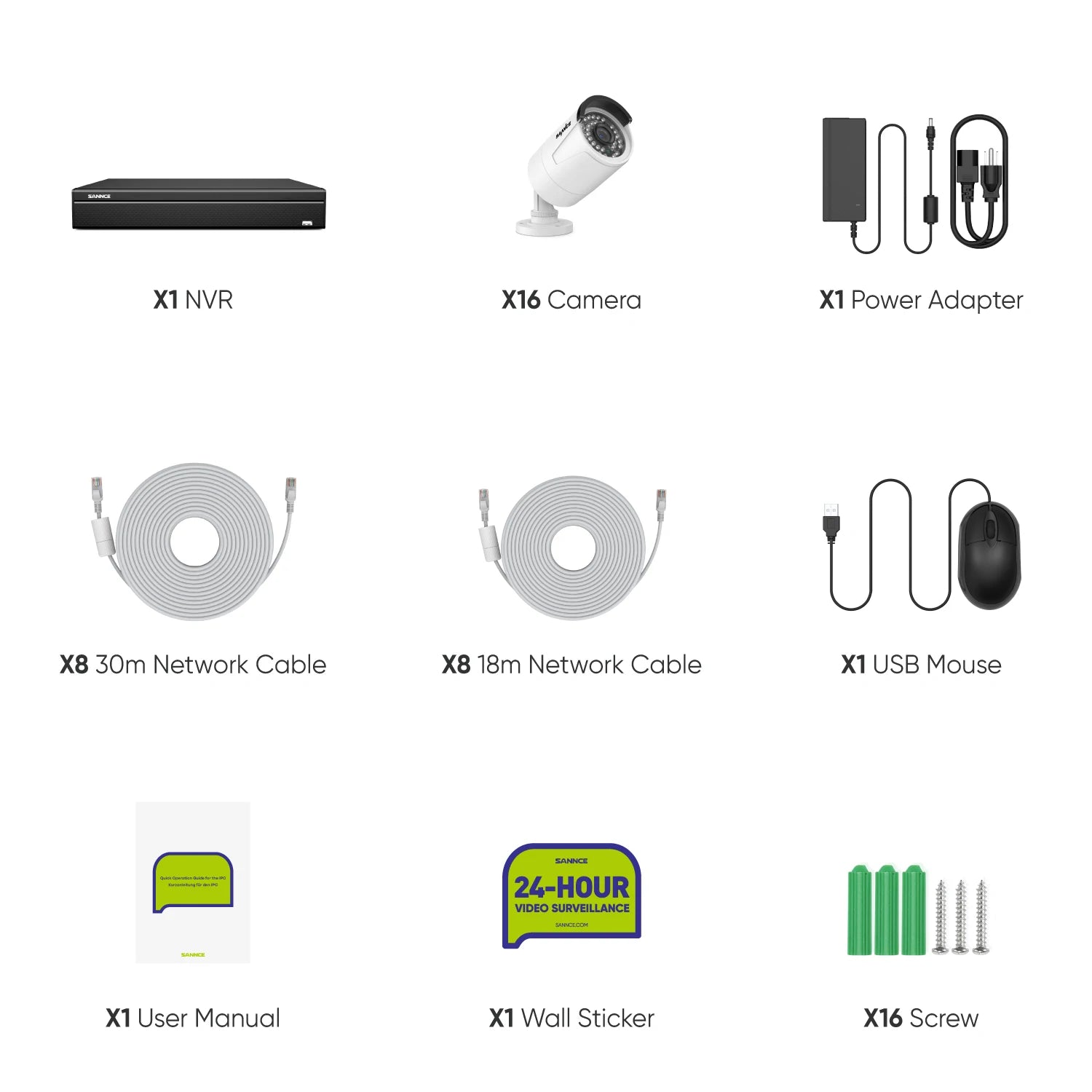

16PCS:

NVR:

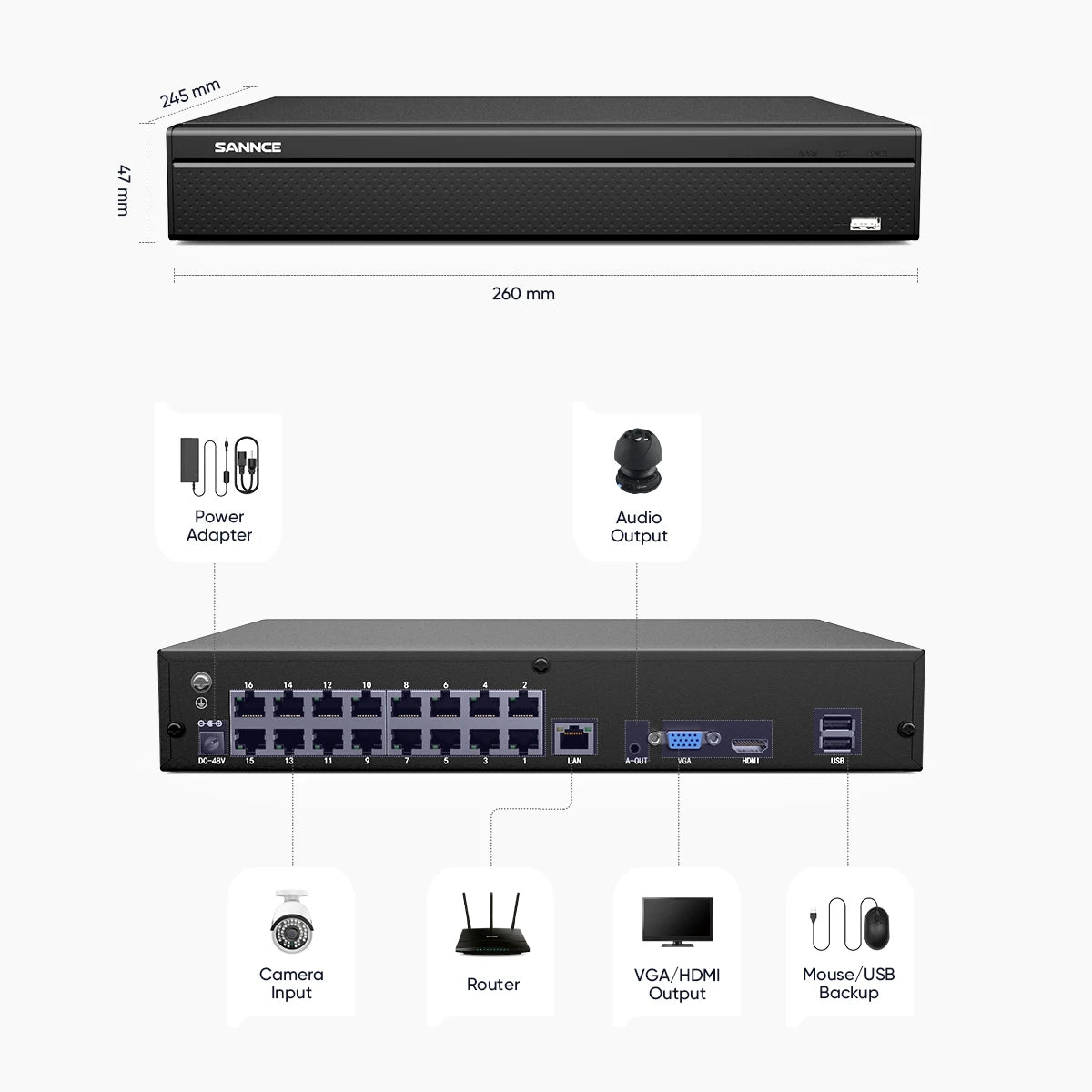

Video & Audio	Video Compression	H.265+
	IP Video Input	16CH POE
	Video Output	HDMI Up to 4K
	Audio Output	Support
	Max Recording Resolution	Up to 8M(3860x2160)
	Max Playback Resolution	Up to 8M(3860x2160)
	Max Playback Channel	4CH
	Max Playback Capacity	4CH 3MP/2CH 5MP/1CH 8MP
	Onvif	Support
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 12TB capacity
External Interface	Network interface	RJ45x1(10/100/1000M)
	PoE	16 Ports(100Mbps, IEEE802.3at/af)
	USB	USB2.0x2
General	Housing	Metal for main part
	Operating Power	DC48V 3.75A
	Power Consumption	10W(without HDD)
		PoE: Max 30W for single port
	Working Temperature	32 °F – 131 °F /0 °C – 55 °C
	Dimensions(W x H x D)	325x265x53mm
	Weight (without hard disk)	1290g(without HDD)

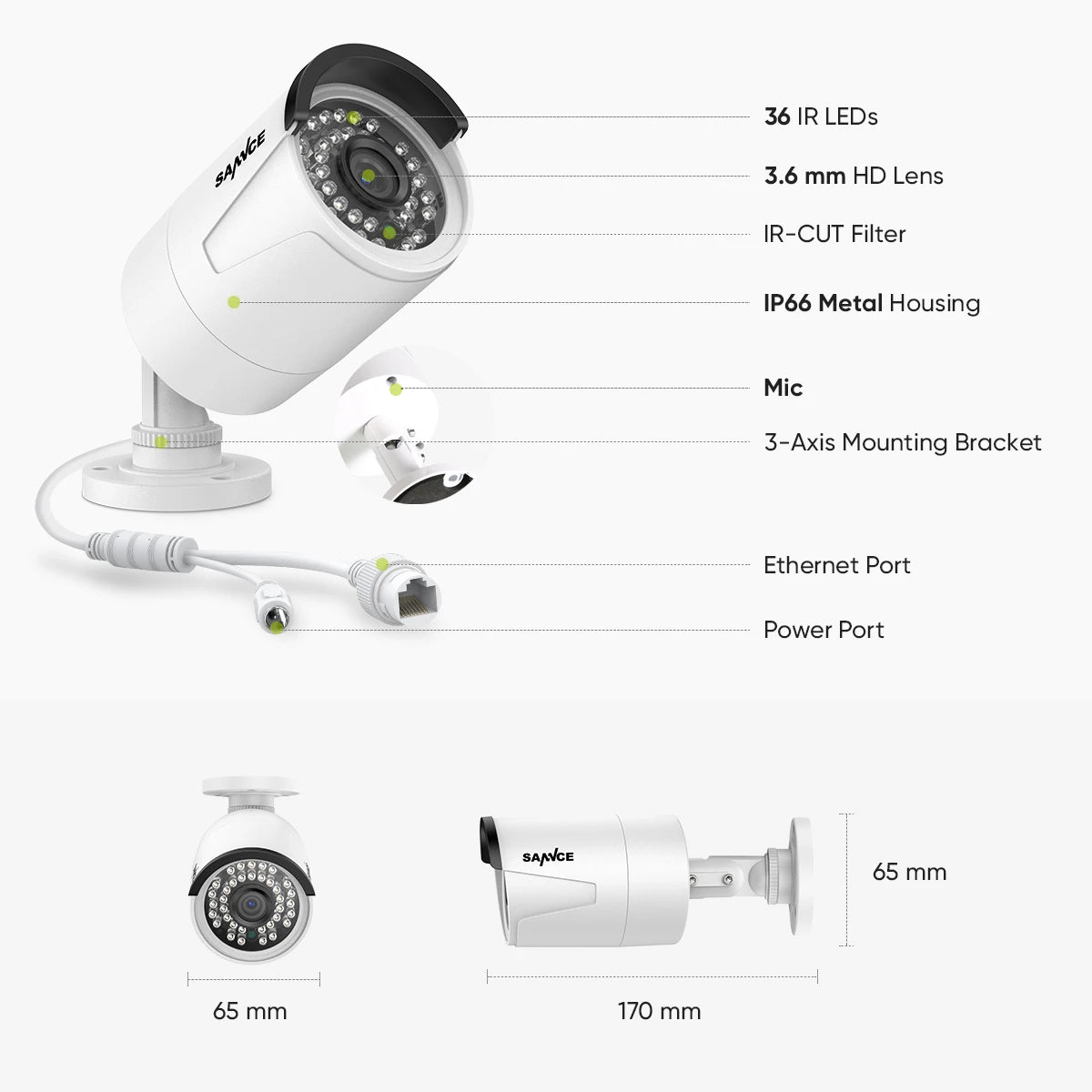

Camera:

Camera	Video Resolution	5MP(2880x1616)
	Image sensor	1/2.8" Progressive Scan CMOS
	Video compression	H.265+
	Audio Compression	G.711A
	Lens	3.6mm
	Angle of View	70°
	Number of Infra-Red LEDs	36
	Night Vision Distance	Up to 100ft/30m
	Wide Dynamic Range	Digital WDR
	IR Cut Filter	YES
	Ethernet	RJ45x1(10M/100M)
General	Housing	Metal
	Operating Power	DC12V;PoE (802.3af)
	Operating Temperature	-4 °F – 140 °F /-20 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP66
	Dimension (L x W x H)	6.7” x 2.6” x 2.6” / 170 x 65 x 65mm
	Weight	0.772lbs / 350g
