SPECIFICATIONS



.

Folded: No

Frame Material: Aluminum

.

Max Speed: >50km/h

Model Number: F0

Motor: Brushless

.

Power Source: Lithium Battery

Power Supply: Lithium Battery

Range per Power: > 60 km

Rated Passenger Capacity: Two Seat

Style: Luxury Type

Voltage: 48V

Wattage: > 500w

Wheel Size: 20“

SPECIFICATION
Motor Power (Nominal)
500W Rear Hub (1000W Peak)

Battery：48V, 12.5AH (600Wh)

Riding Range：18–30 mi (28–48 km)

Top Speed
20 MPH
(Adjustable to 28 MPH)

Frame：High-strength Steel Pipe

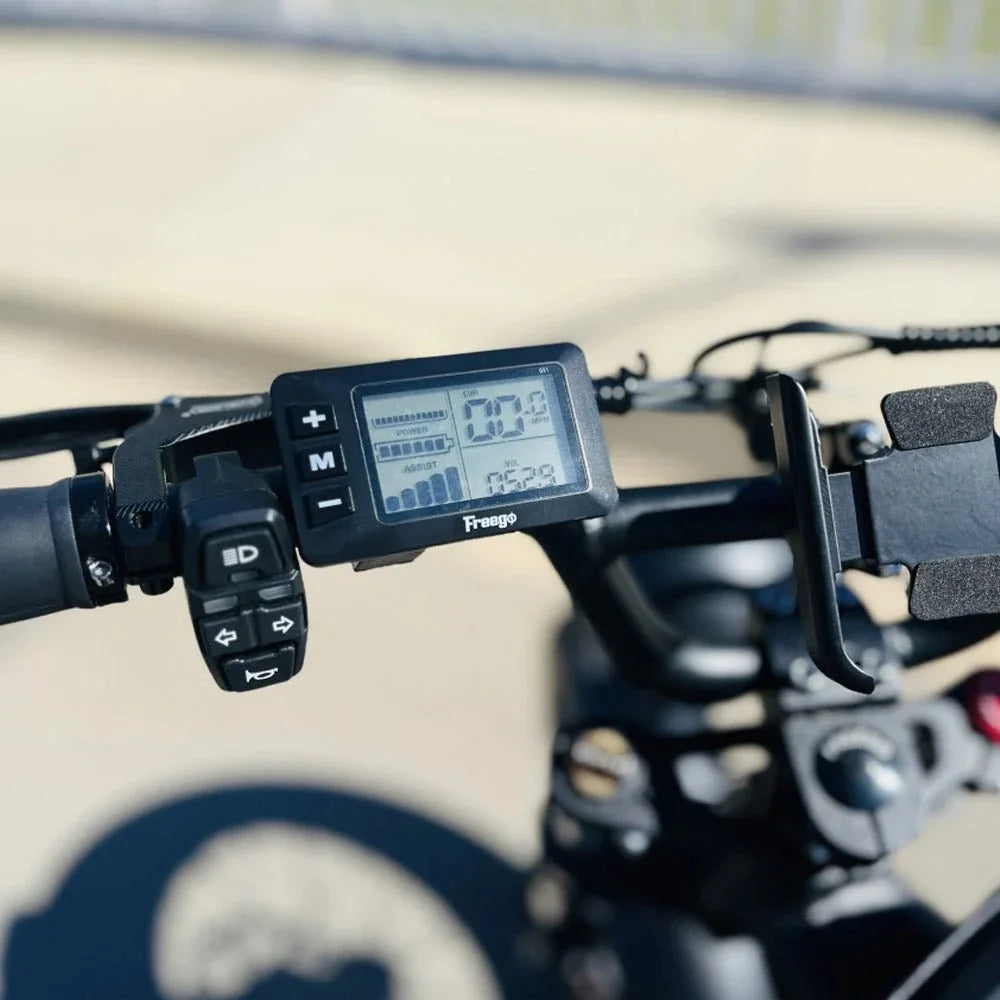

Display：LCD Display

Max Loading：220 lbs (100kg)

Net Weight：104 lbs (47 kg)

Charging Time：3-5 H

Transmission Gears：Single Gear

Brake System：Front+Rear Hydraulic Brake

Wheel Size & Tires：20 x 4" Air-filled tires with tube

Suspension
Full Suspension for Front & Rear

Rear Brake Light：Yes

Charger Specification

Output: 54V, 2A; Input: 100-240V, 50/60Hz

Package Size
56.7 × 14.2 × 33.9 inches (144 × 36 × 86 cm)

Suggested Rider Height
4'11"-5'8"

UNIQUE FRAME STRUCTURE

Shotgun Lite FO features a lower frame height and a unique design tailored for petite riders and female cyclists. The frame's shape and position ensure optimal balance and control, enhancing comfort and stability.

Shotgun Lite FO

Wider surface area of fat tires enhances stability on uneven or slippery surfaces, offering superior traction on sand, snow, or gravel. Designed for versatility, these tires excel across diverse terrains, from mountain trails to city streets, ensuring reliable control and performance.

REMOVABLE BATTERY

High battery life and is detachable, allowing riders to remove the battery for charging anytime and anywhere. Additionally, the removable battery feature makes it easier to protect it from extreme weather conditions, ensuring optimal performance and longevity.

HYDRAULIC BRAKE

One of the main advantages of hydraulic brakes is their excellent stopping power. Using fluid pressure can apply more force to the braking mechanism, resulting in a faster, more controlled stop. With hydraulic brakes, riders can be confident in their ability to stop safely and efficiently, even at higher speeds.

FOR TEENAGERS,SAFE AND COMPACT

Designed with smaller frame and 10.4Ah battery capacity, this electric bicycle is perfect for teenagers and petite riders. Its lightweight build ensures easy handling, while safety-focused features provide a secure and comfortable riding experience for daily adventures.
