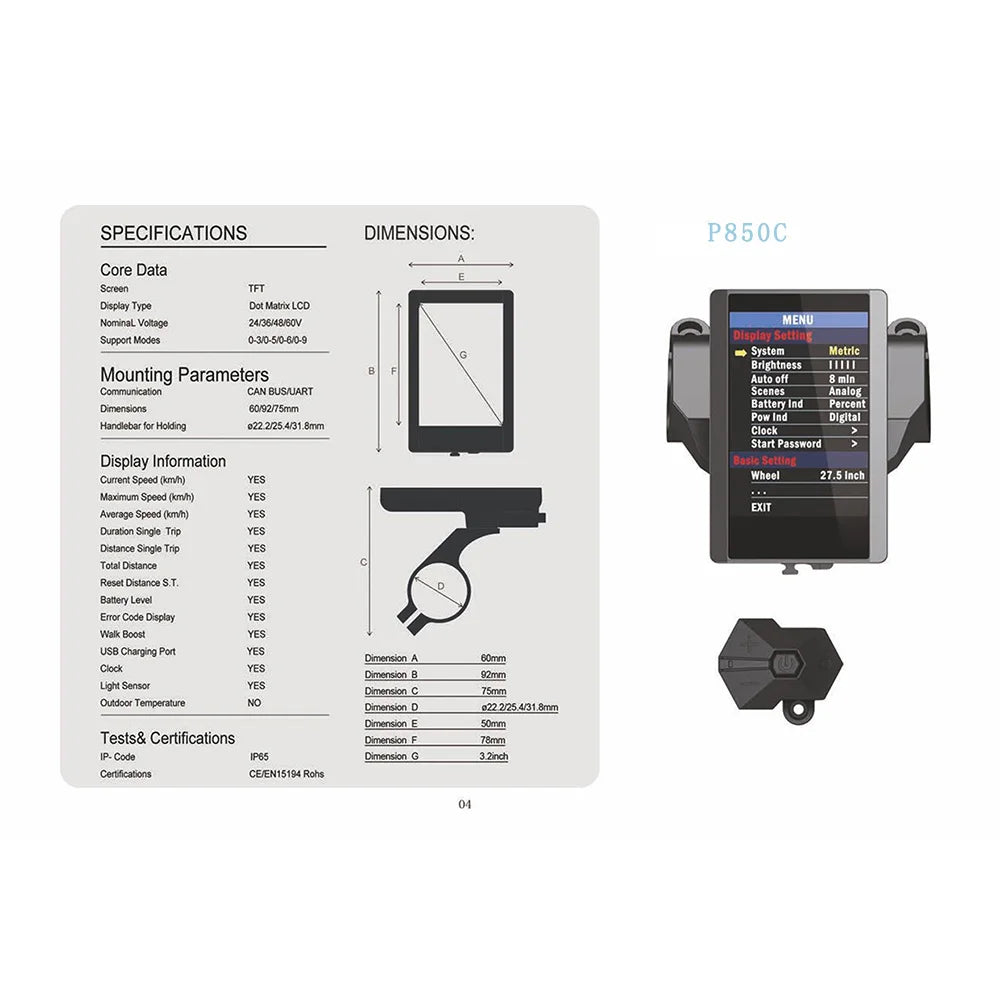

SPECIFICATIONS



9-level Assist: 3/5/9 optional



Backlight: 5 Levels

Battery Indicator: Reliable battery indicator

Brake Signal: On Display

.

Button: Ergonomic external button design

Distance Display: Kilometer/ Mile

Headlight/backlight: On/Off

.

Mileage Indicator: Odometer/Trip distance/ Clock/ Riding time

Mileage indicator: ODO/TIRP/CLOCK/TIME

.

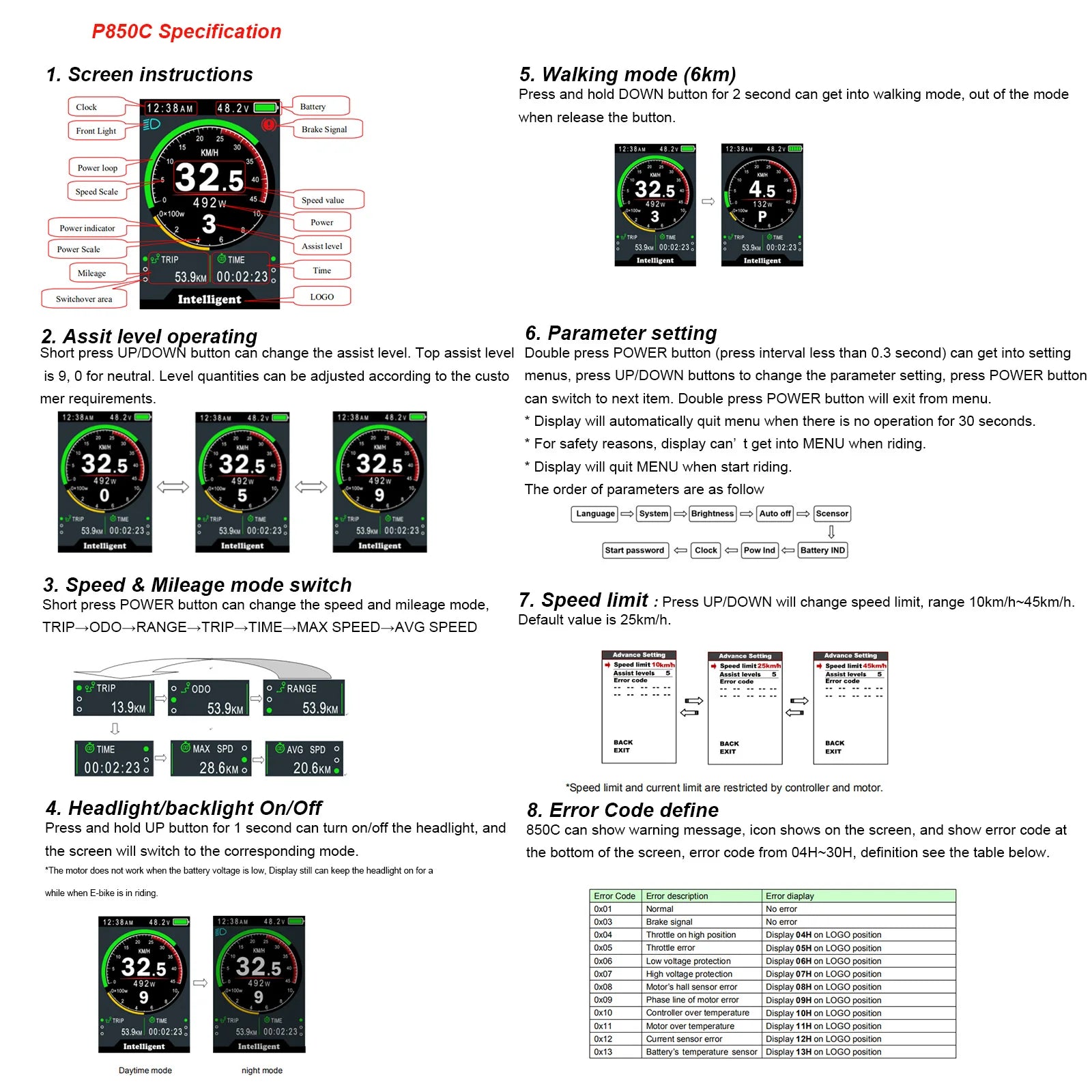

Other: Error code indicator

Power Indicator: Real time power indicator...

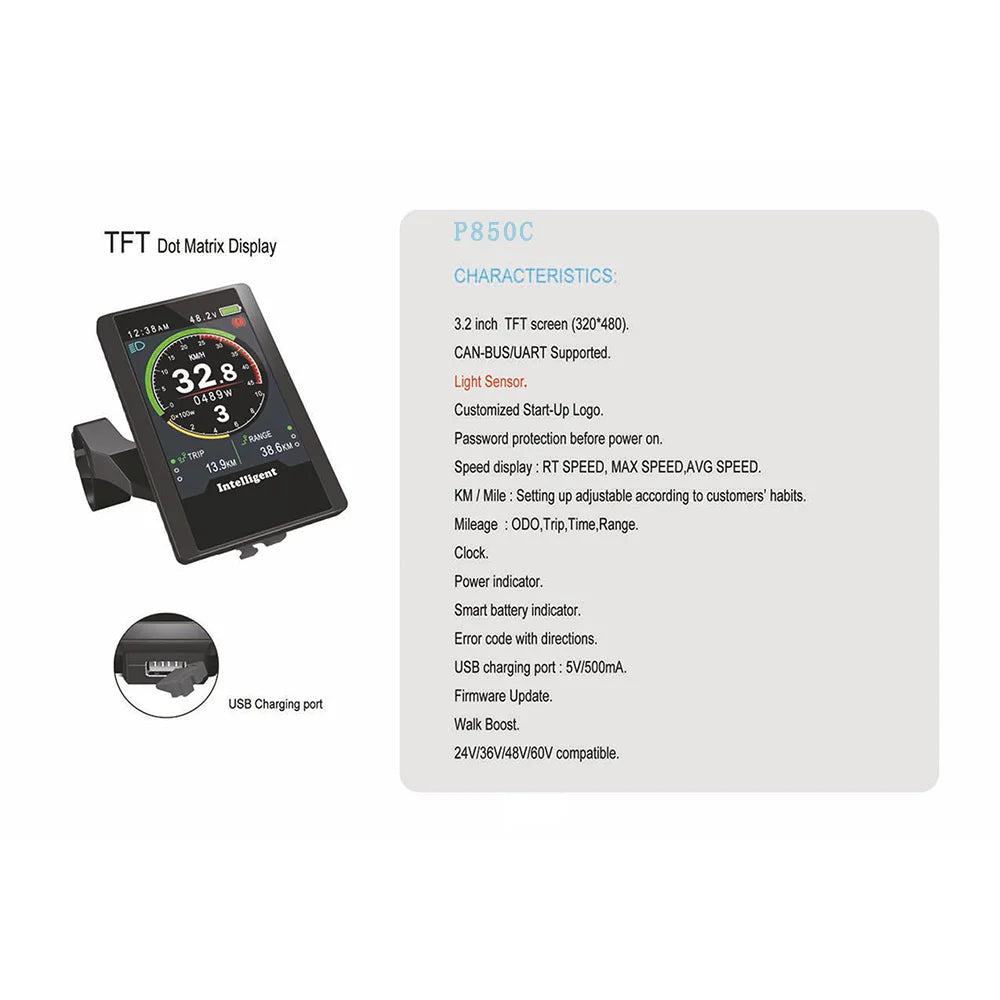

Screen: High-contrast 3.2 inch IPS colorful

Software Upgraded: Software can be upgraded through UART

Speed display: AVG/MAX/REAL TIME SPEED

Temperature: -20-45

Type: Display,P850C Display

USB charging port: 5V/500mA

Upgraded: 850C Upgraded

Walking mode: 6KM

Electric Bike Speedometer TFT Display P850C For BAFANG BBS Mid Drive Hub Motor ebike Computer With USB Port

1. The HMI with a high-contrast LCD display delivers all important information at a glance and can also be read in direct sunlight without difficulty.

2. The BAFANG handlebar controller gives good feedback, is extremely robust and easy to use.

3. The additional output can be individually controlled by five support levels.

4. The user interface is clearly legible and intuitive to use. The HMI is compatible with the Bus system RS 232. Protected against contact and ingress of water and dirt and complies with protection class IP 65.

5. The display only fit for the BAFANG motor which has UART protocol.

6. Product shell is ABS, transparent window is made with high strength Acrylic

7. Dimensions : host/L92mm*W60mm*H14mm
