Annke H.265+ 3K Smart Dual Light POE Camera System 2.8MM Len Human Vehicle Detection IP67 Security Protection Video Surveillance
Annke H.265+ 3K Smart Dual Light POE Camera System 2.8MM Len Human Vehicle Detection IP67 Security Protection Video Surveillance
SPECIFICATIONS
Brand Name: ANNKE
Cable Length: 30m,18m
Certification: CE,EPA,FCC
Hign-concerned Chemical: None
Model Number: N46PCK+I51EG*16
Origin: Mainland China
PCS of Camera: 16pcs
Resolution: 5MP
Smart home platform: alexa
TV System: NTSC,PAL
Video Input: 16 Channel

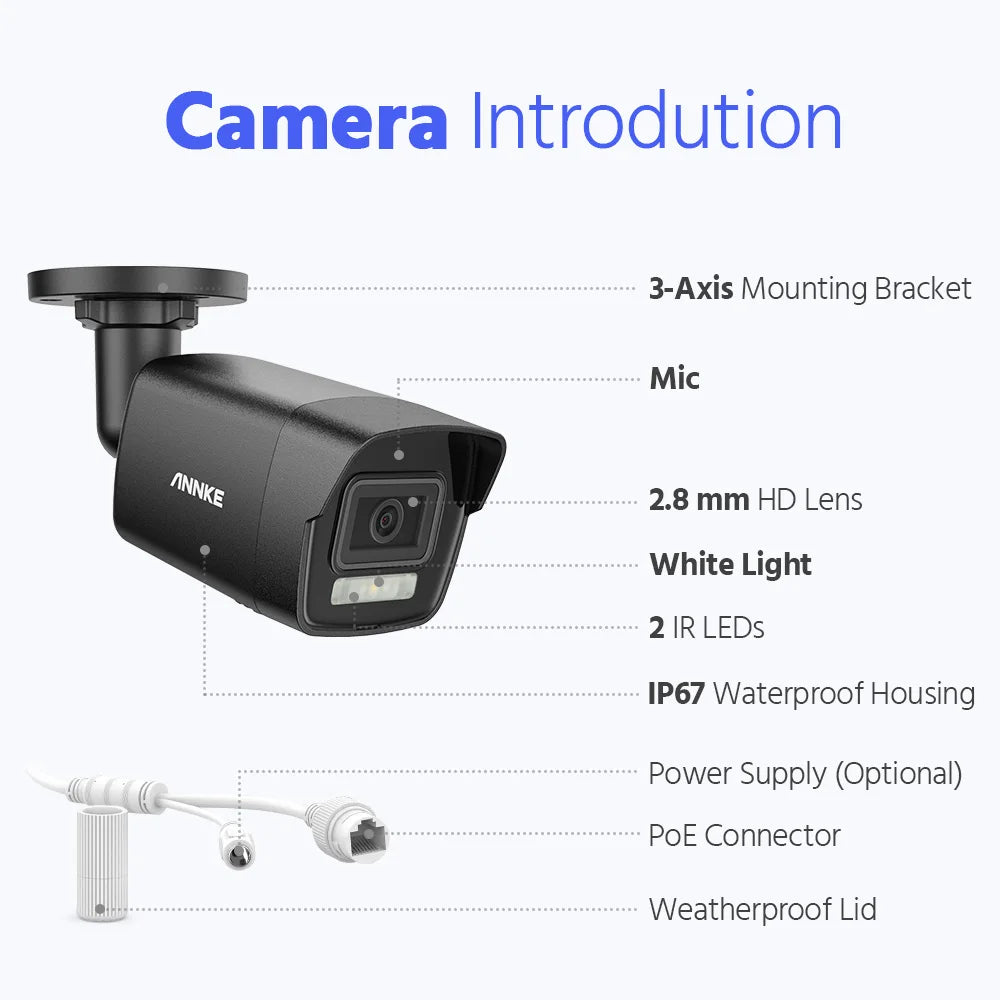

Camera Key features
★ 3K IR Network Camera with 16:9 image scale
★ 2.8mm@F1.6 lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection

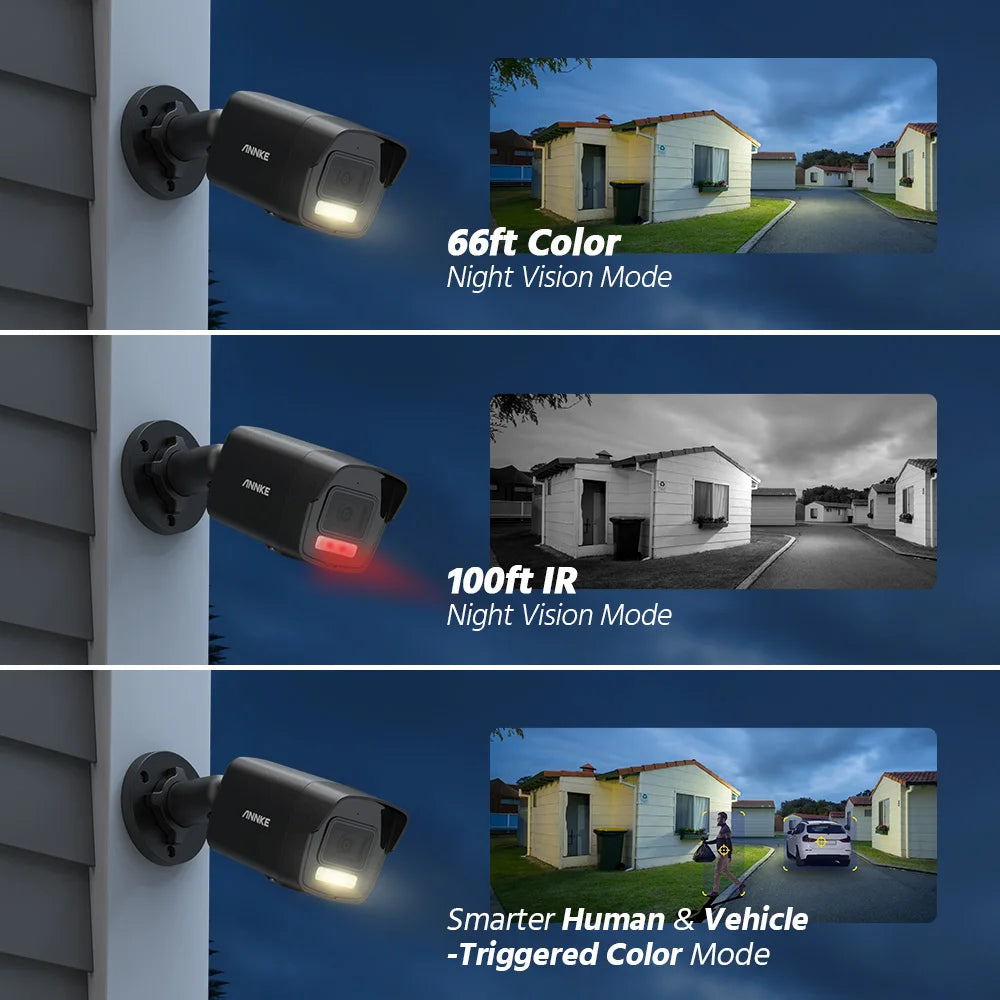

★ Smart Dual-Light: advanced technology with long range
★ Clear day and night vision with 3D DNR and 120DB WDR

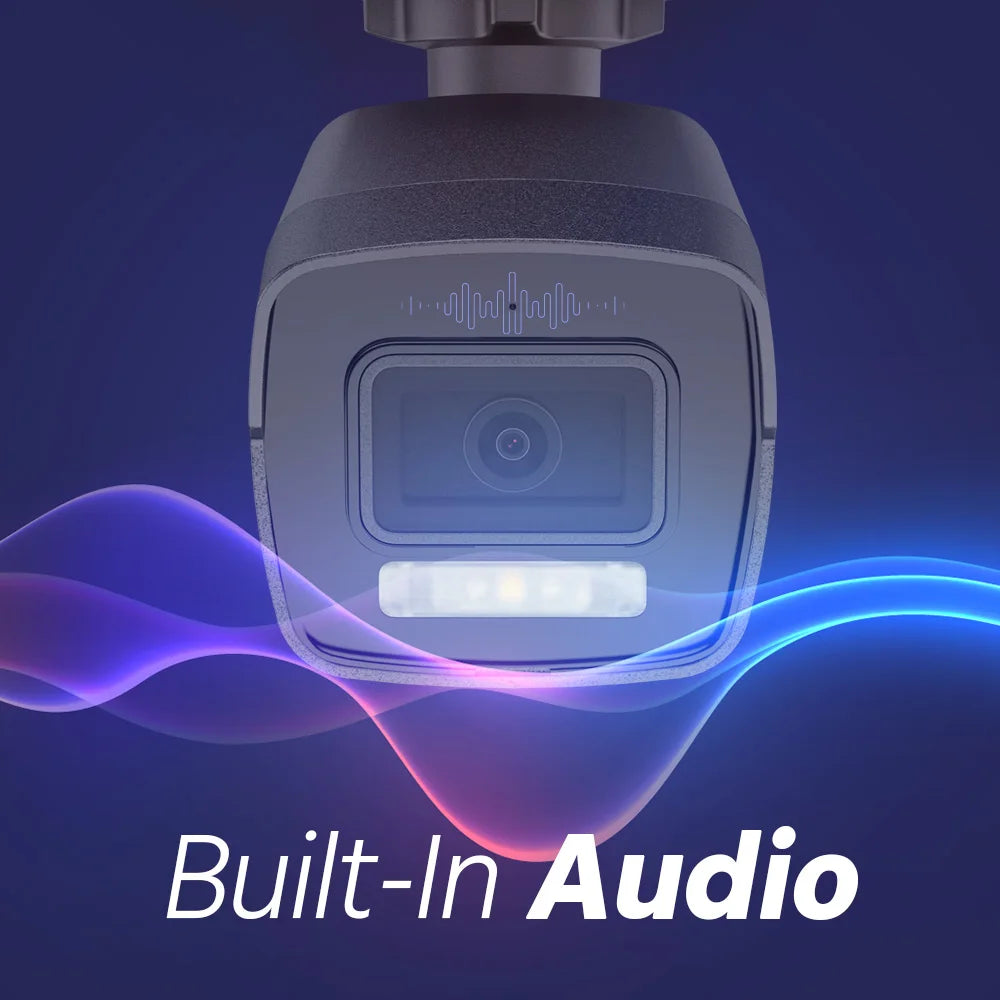

★ Built-in microphone for real-time audio security

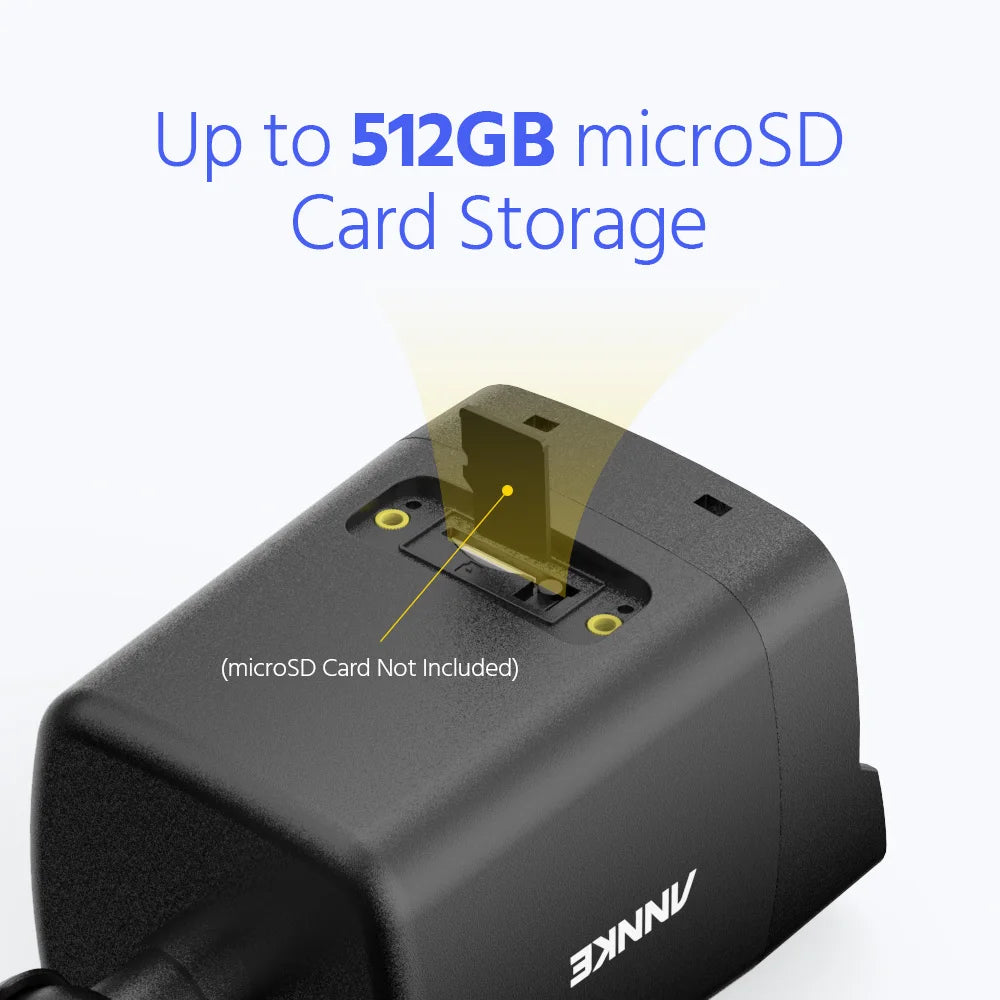

★ Support on-board storage up to 256 GB (SD card slot)

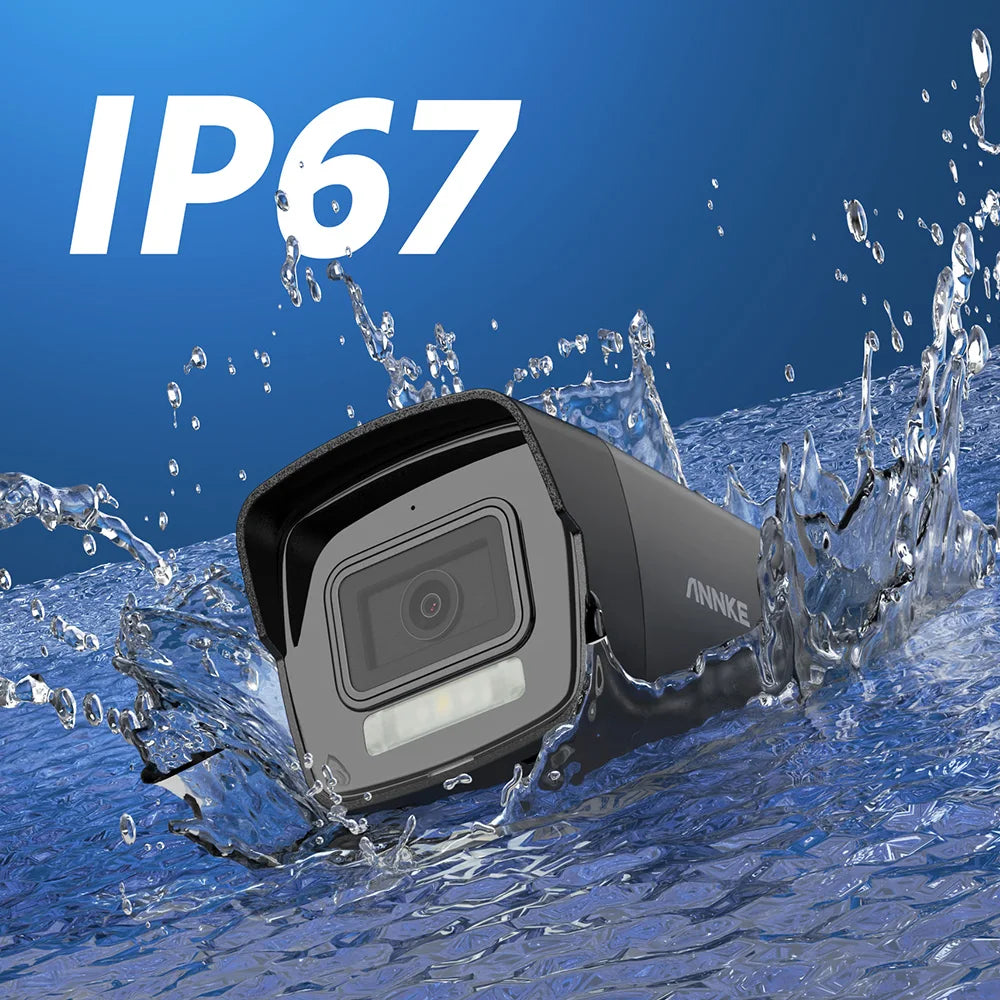

★ IP67 Dust and Waterproof Rating

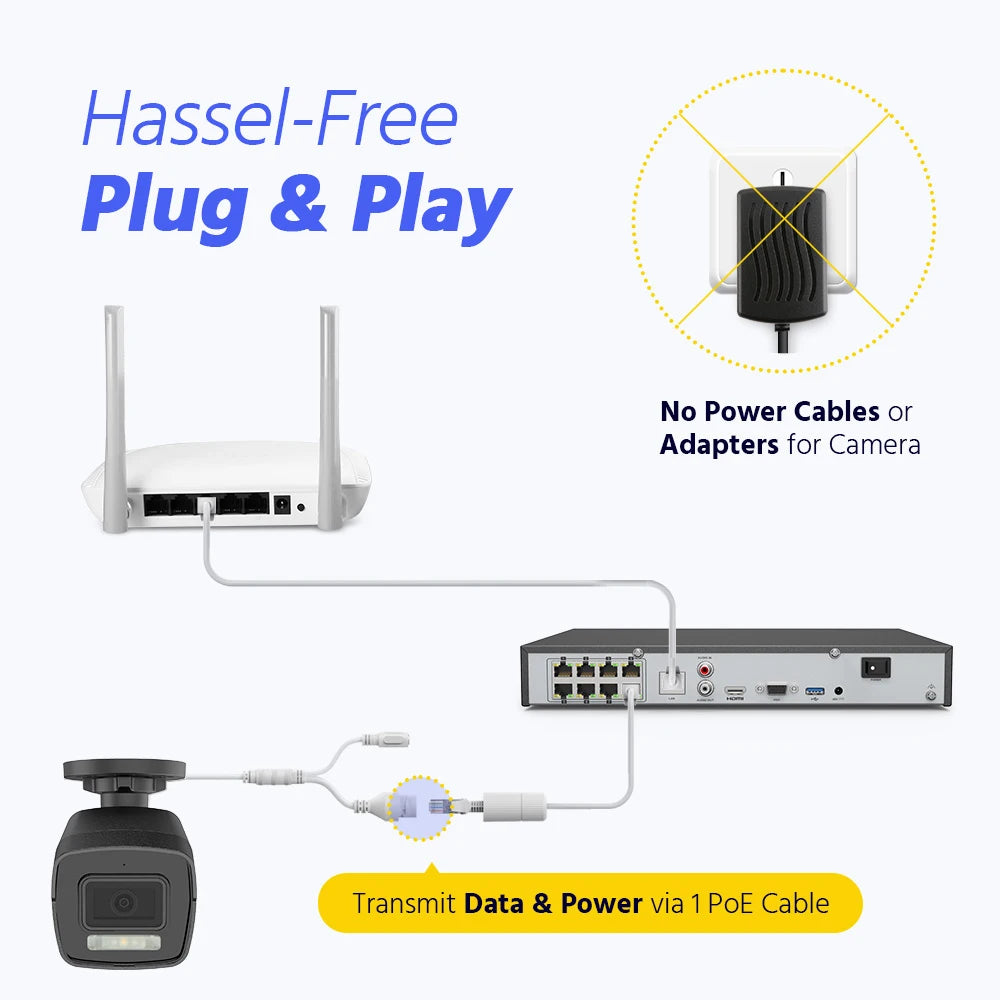

★ Support PoE &DC12V

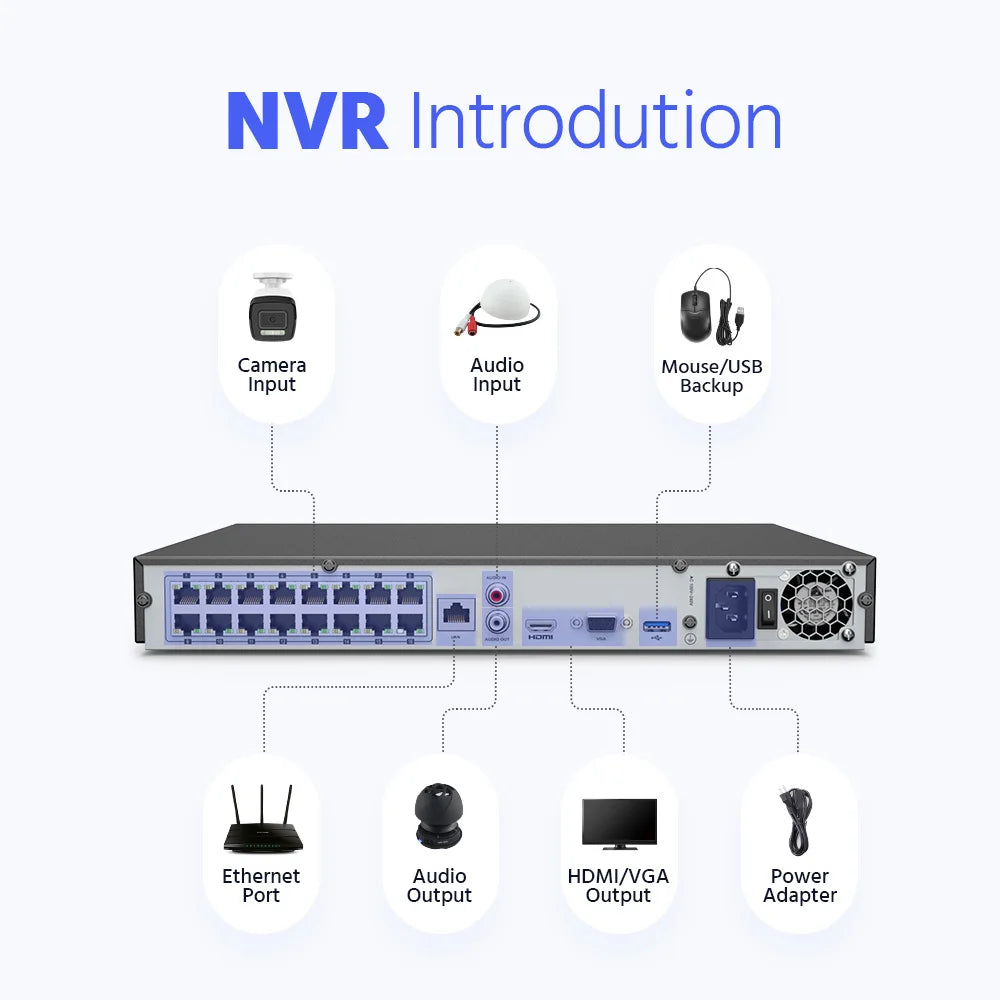

NVR Key features
· Live view, recording&playback up to 8 MP resolution

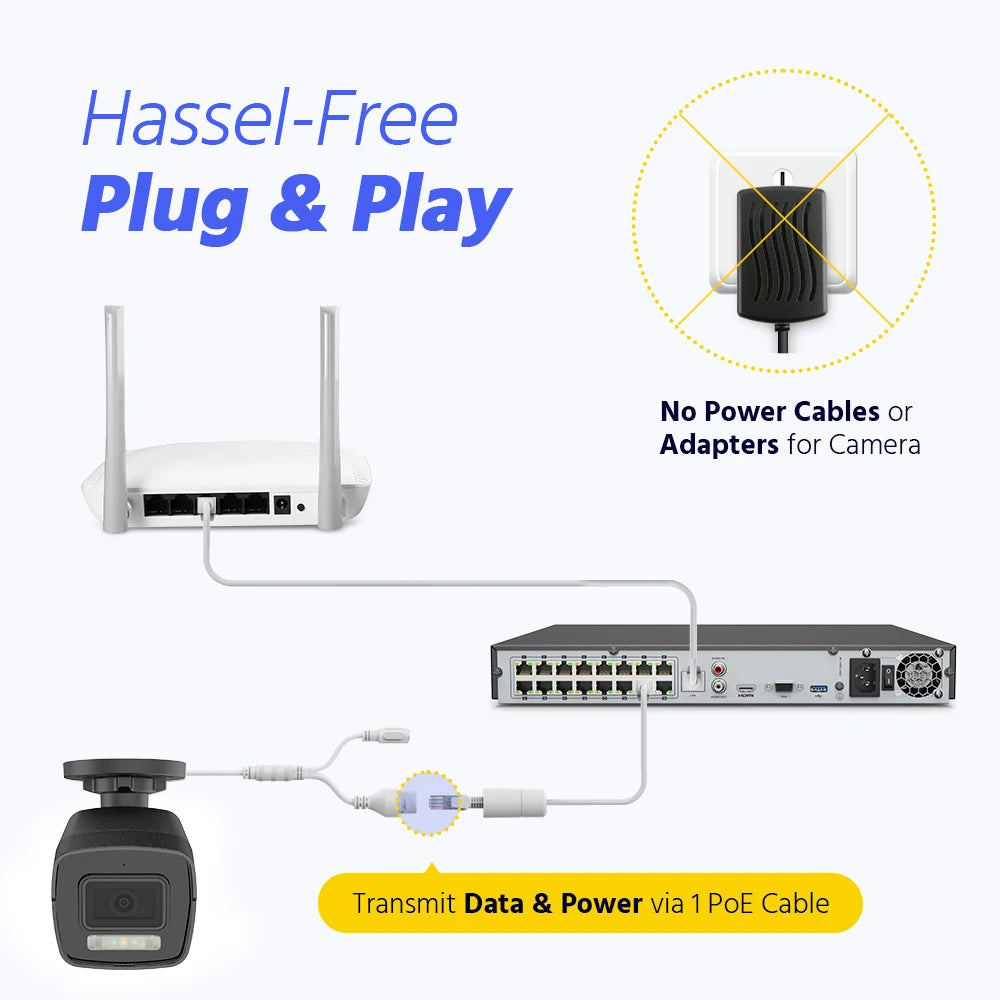

· Up to 16 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring

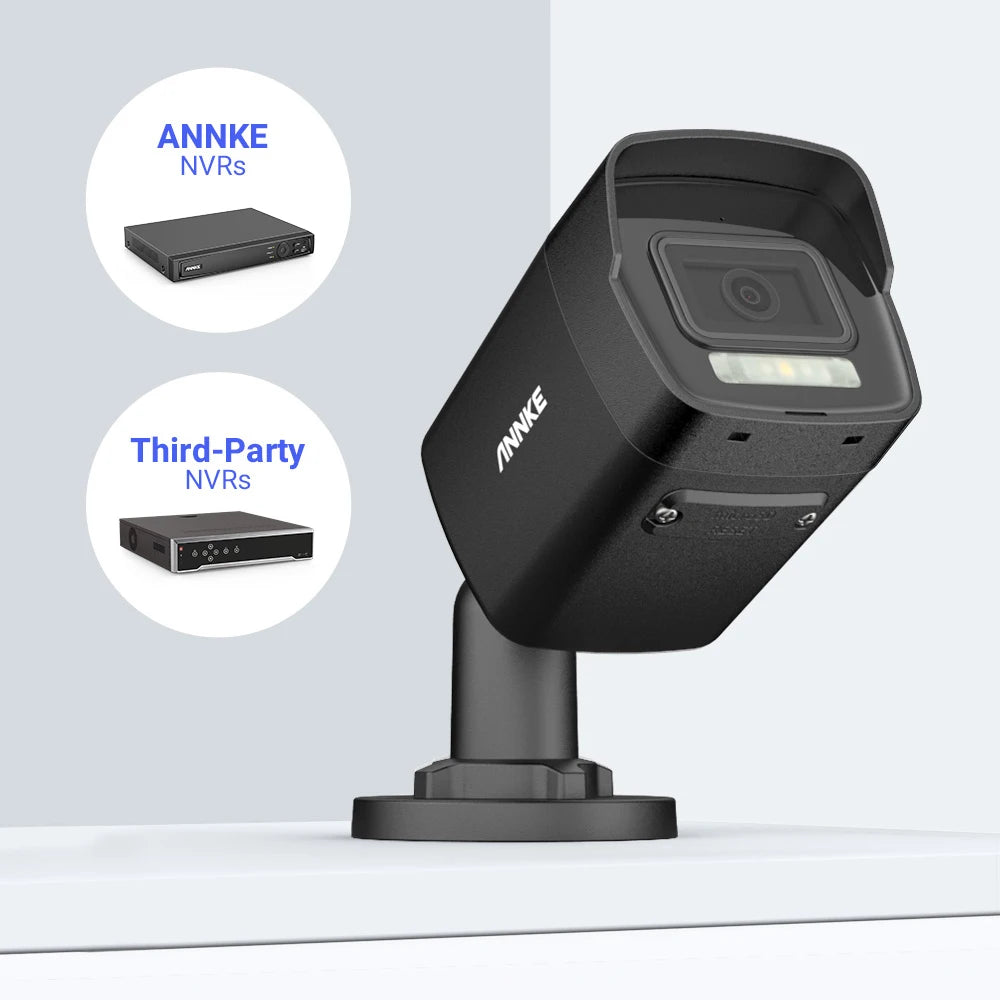

· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· 2 SATA interfaces connectable for recording and backup
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection
Camera Key features
★ 3K IR Network Camera with 16:9 image scale
★ 2.8mm@F1.6 lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Smart Dual-Light: advanced technology with long range
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 256 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
NVR Key features
· Live view, recording&playback up to 8 MP resolution
· Up to 16 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· 2 SATA interfaces connectable for recording and backup
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection

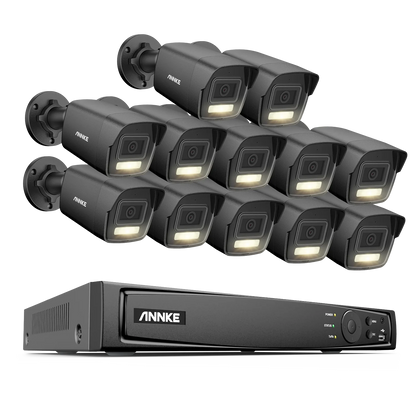

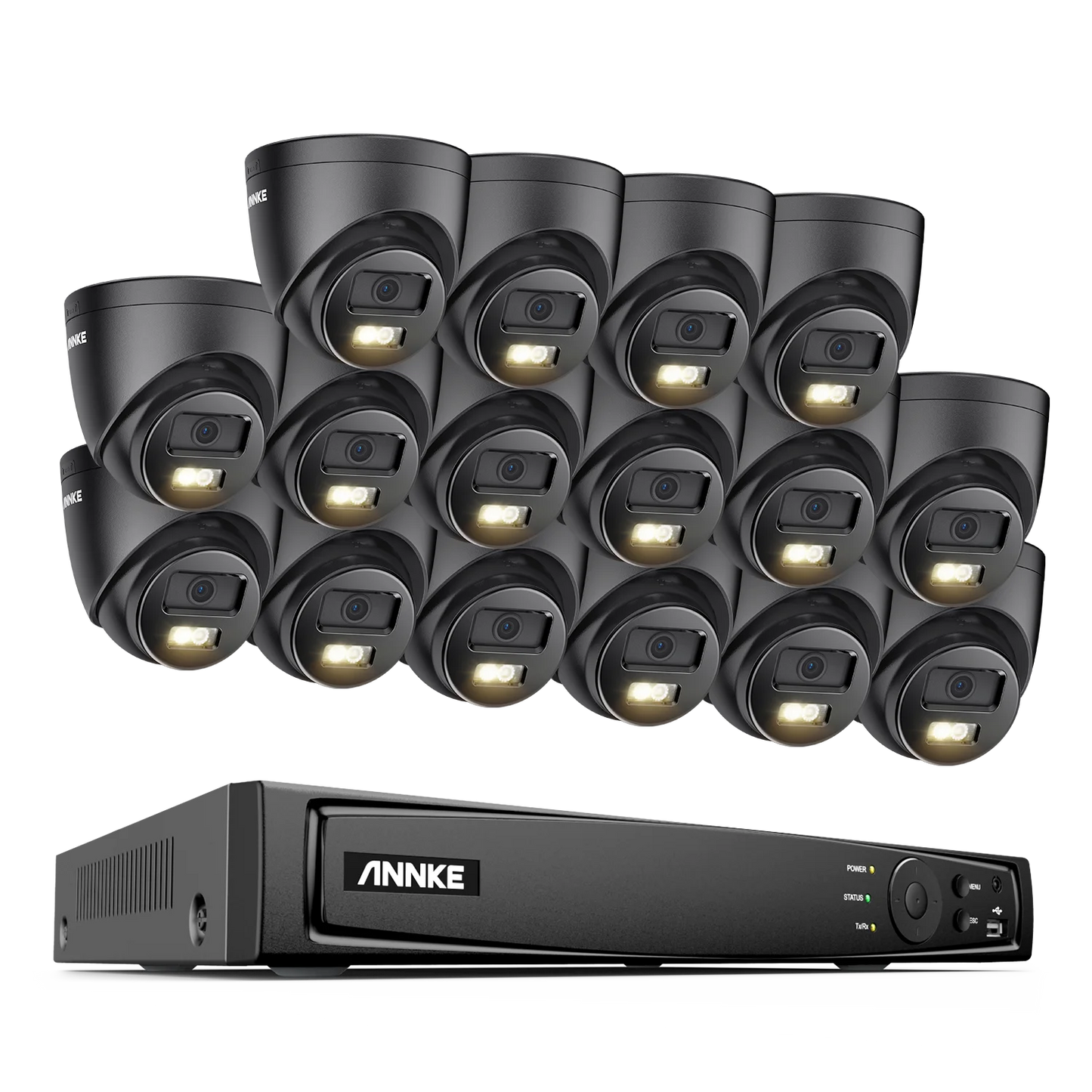

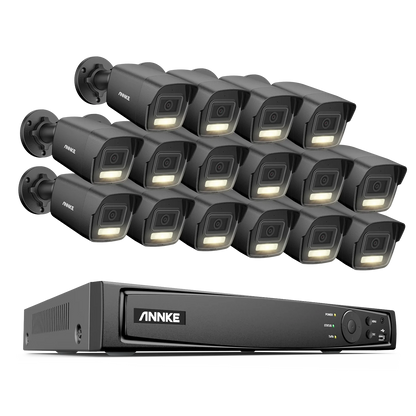

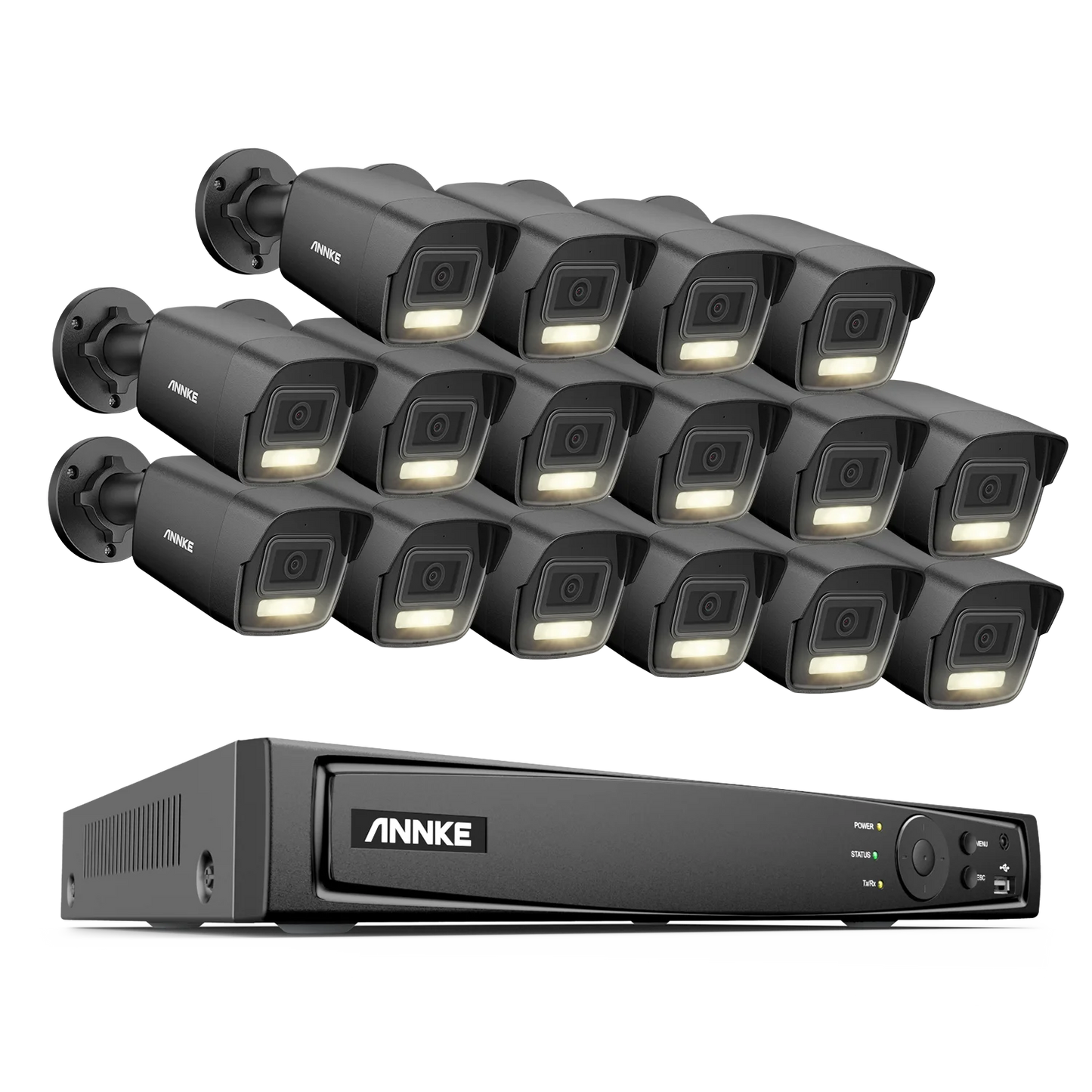

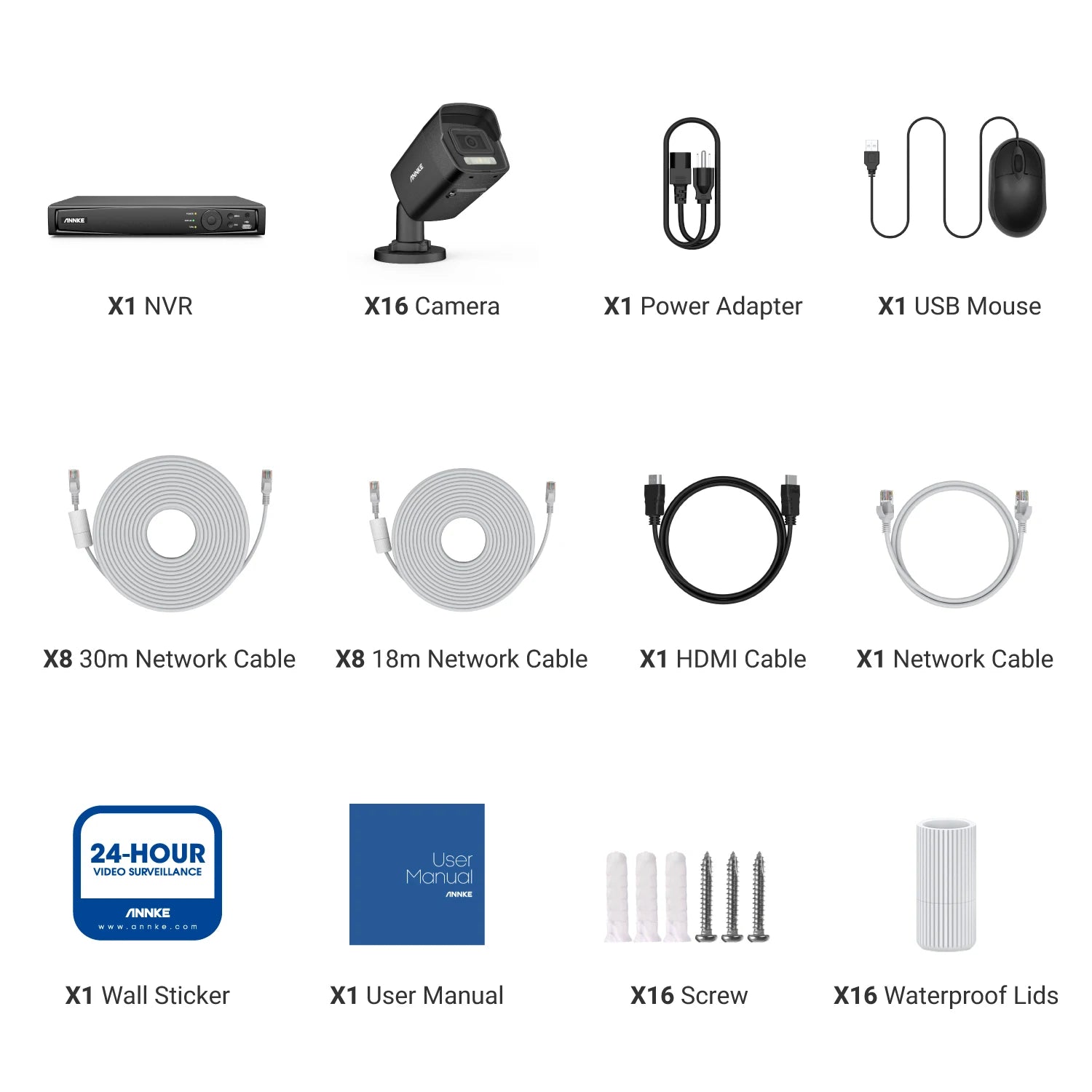

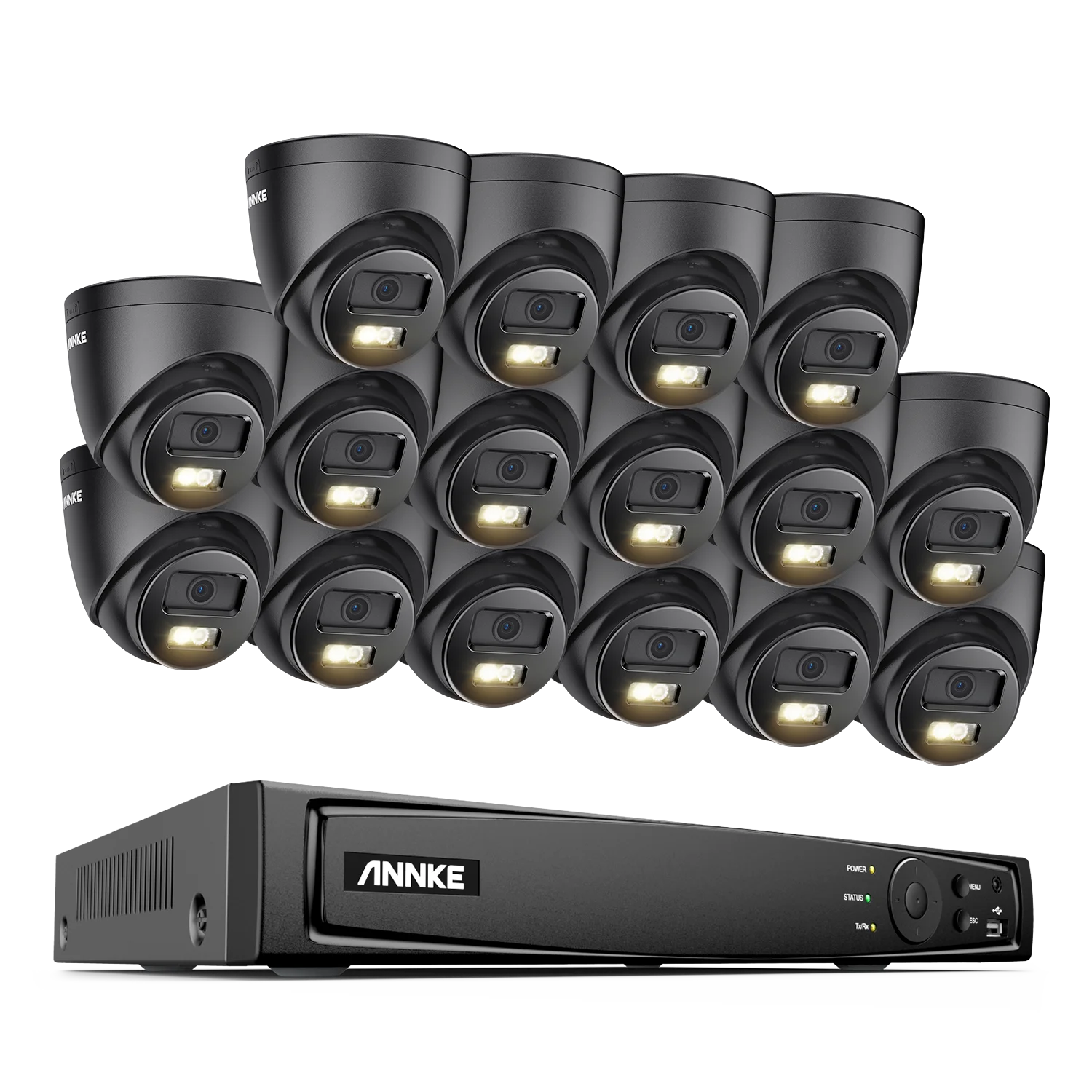

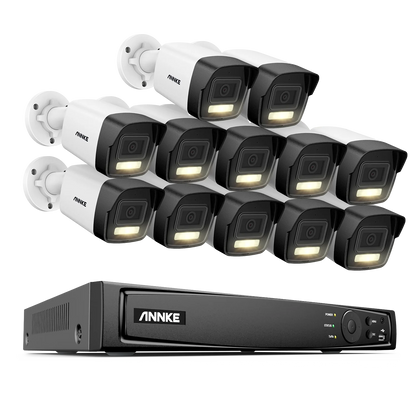

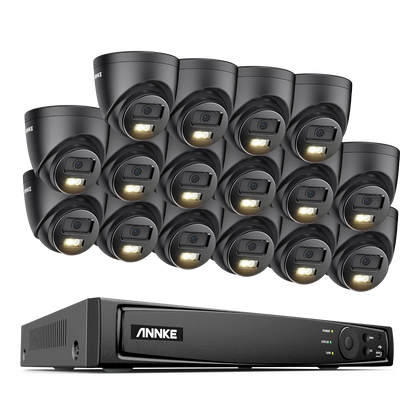

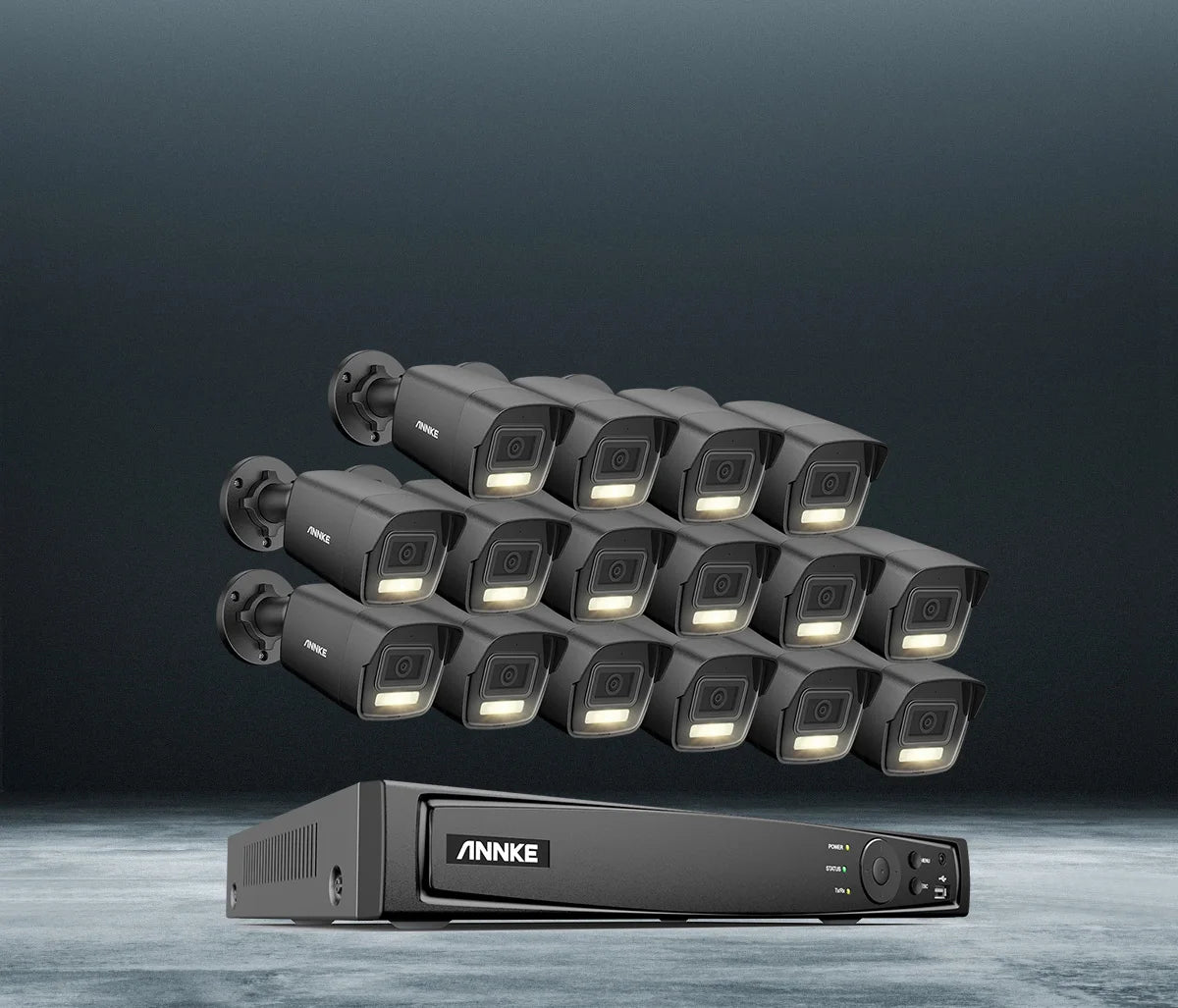

16CH NVR + 16PCS Camera
16CH NVR +16Pcs Camera

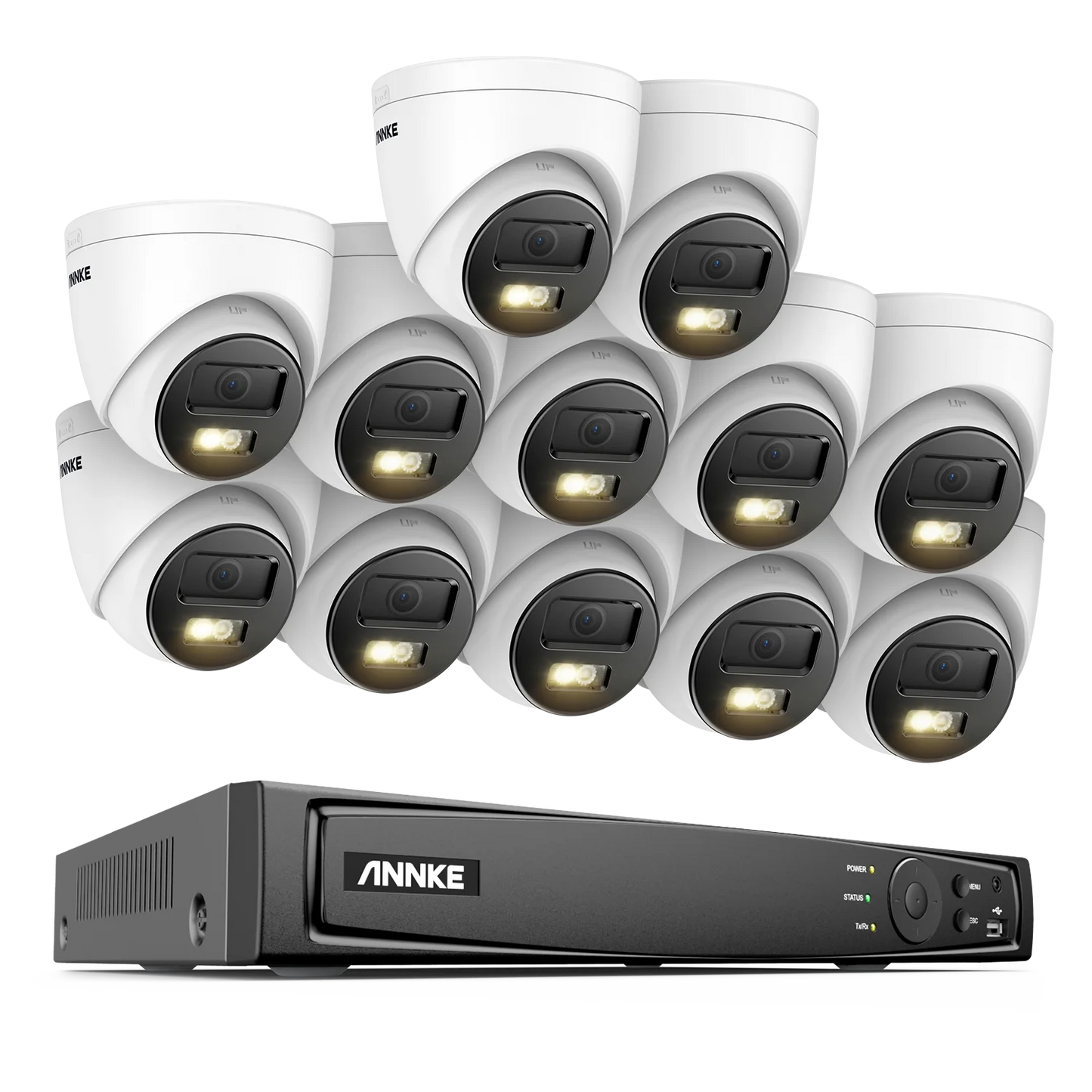

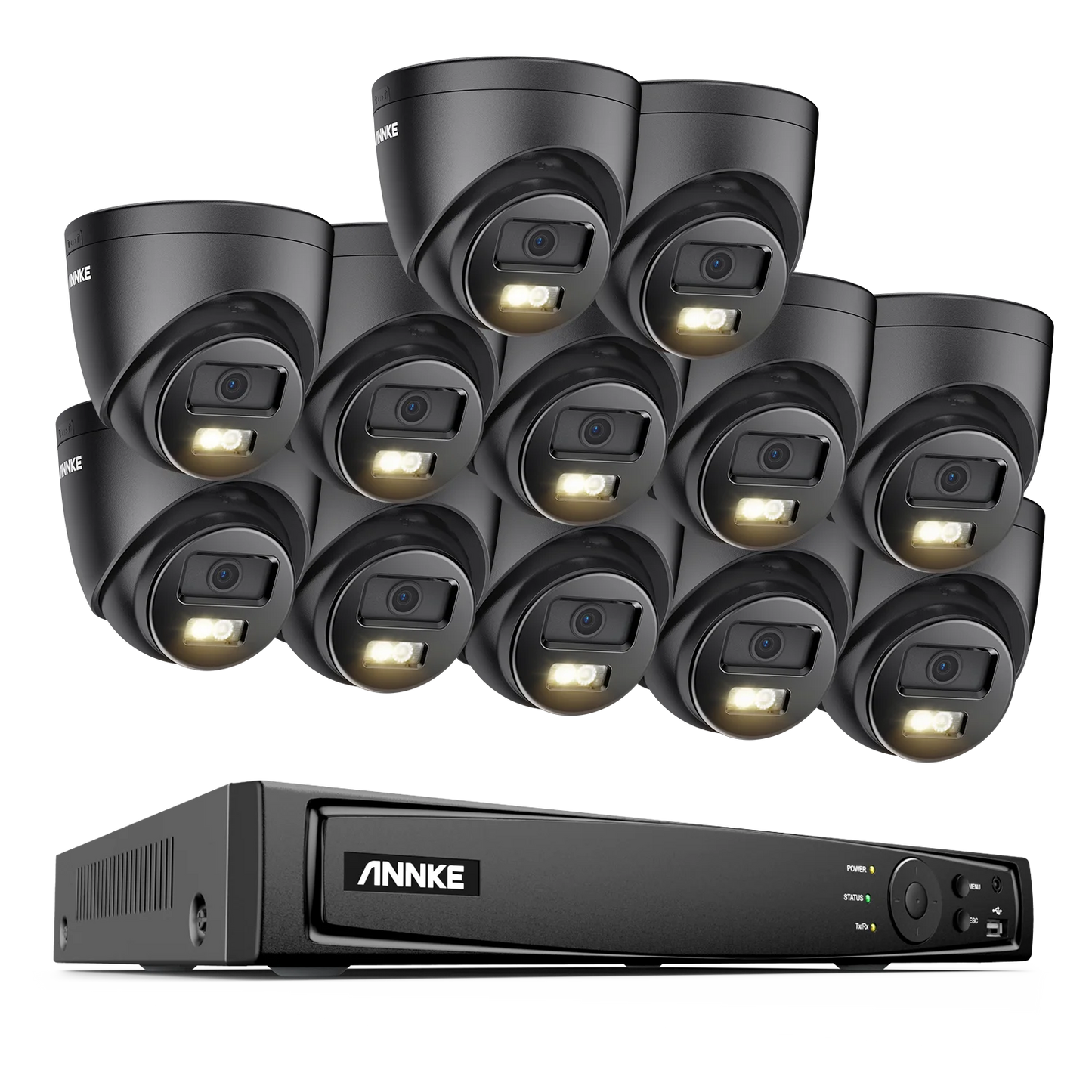

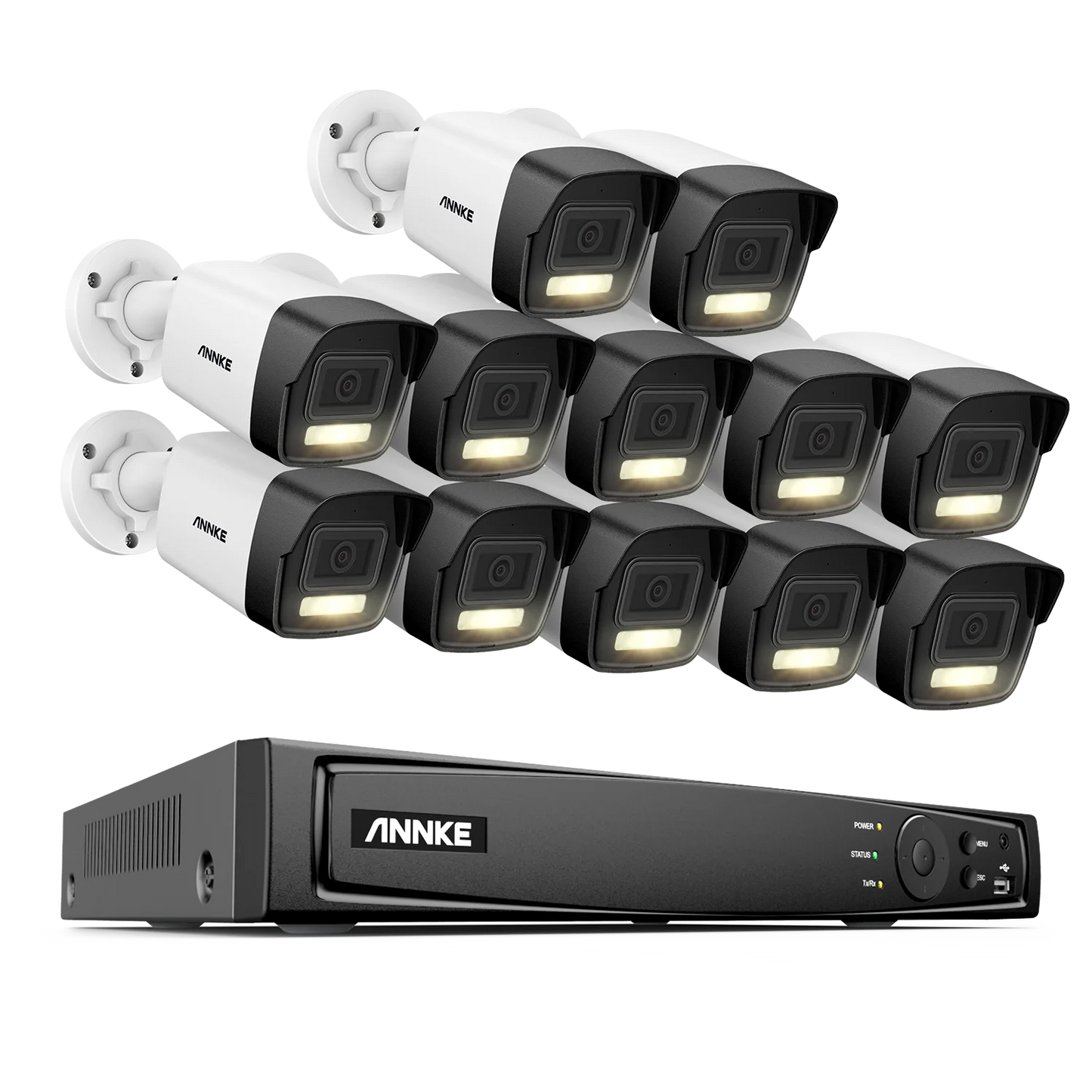

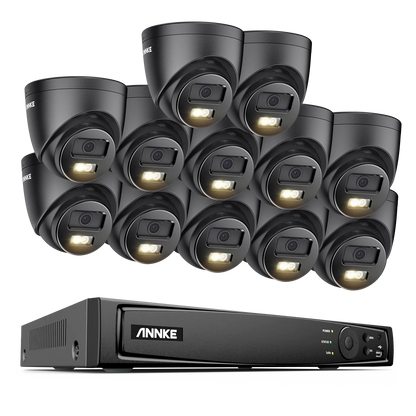

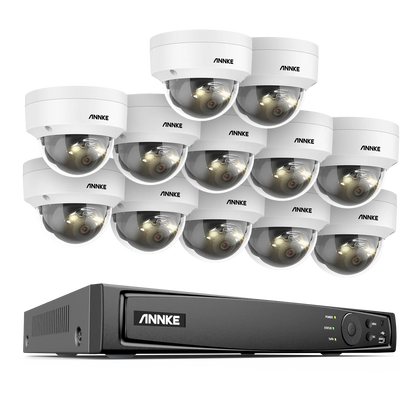

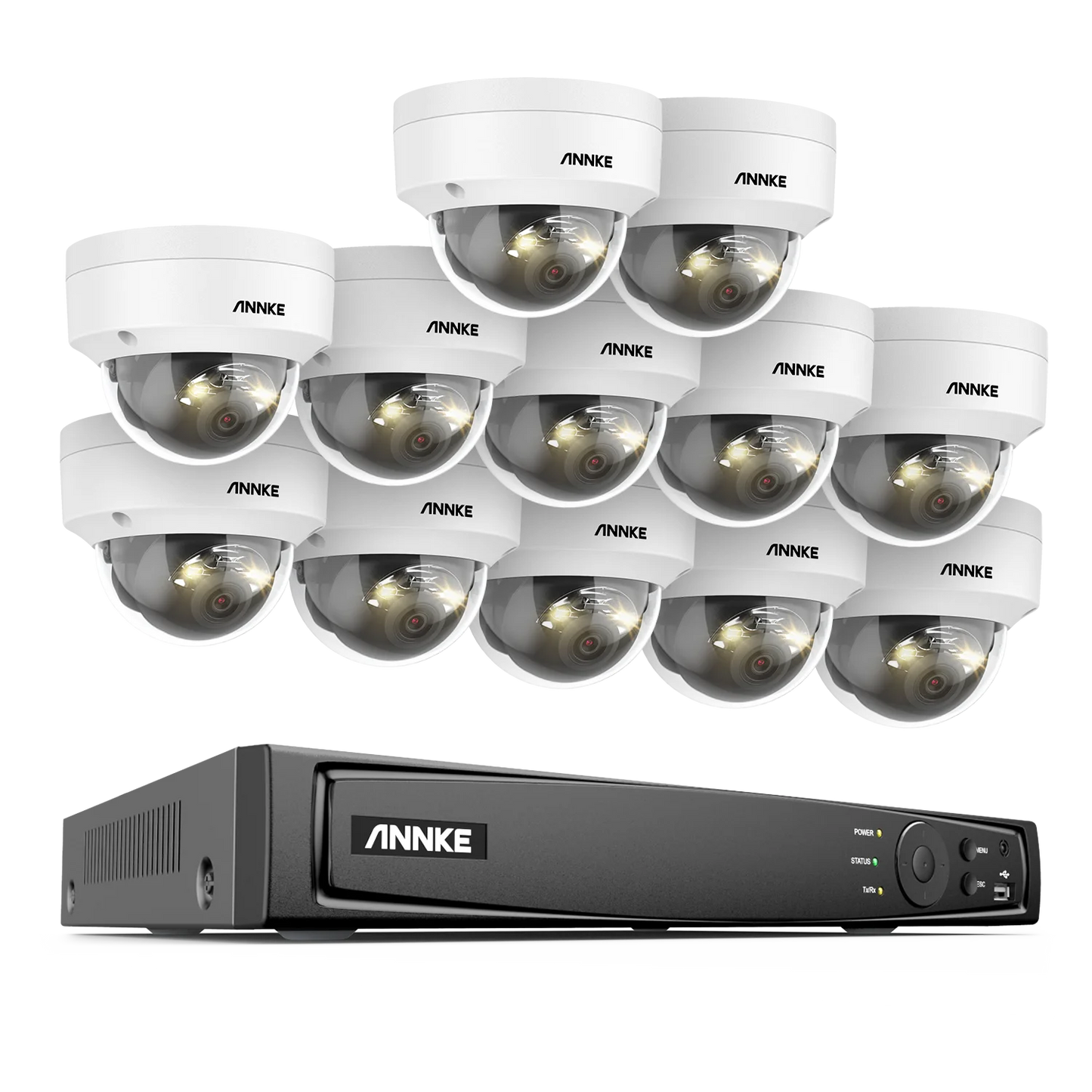

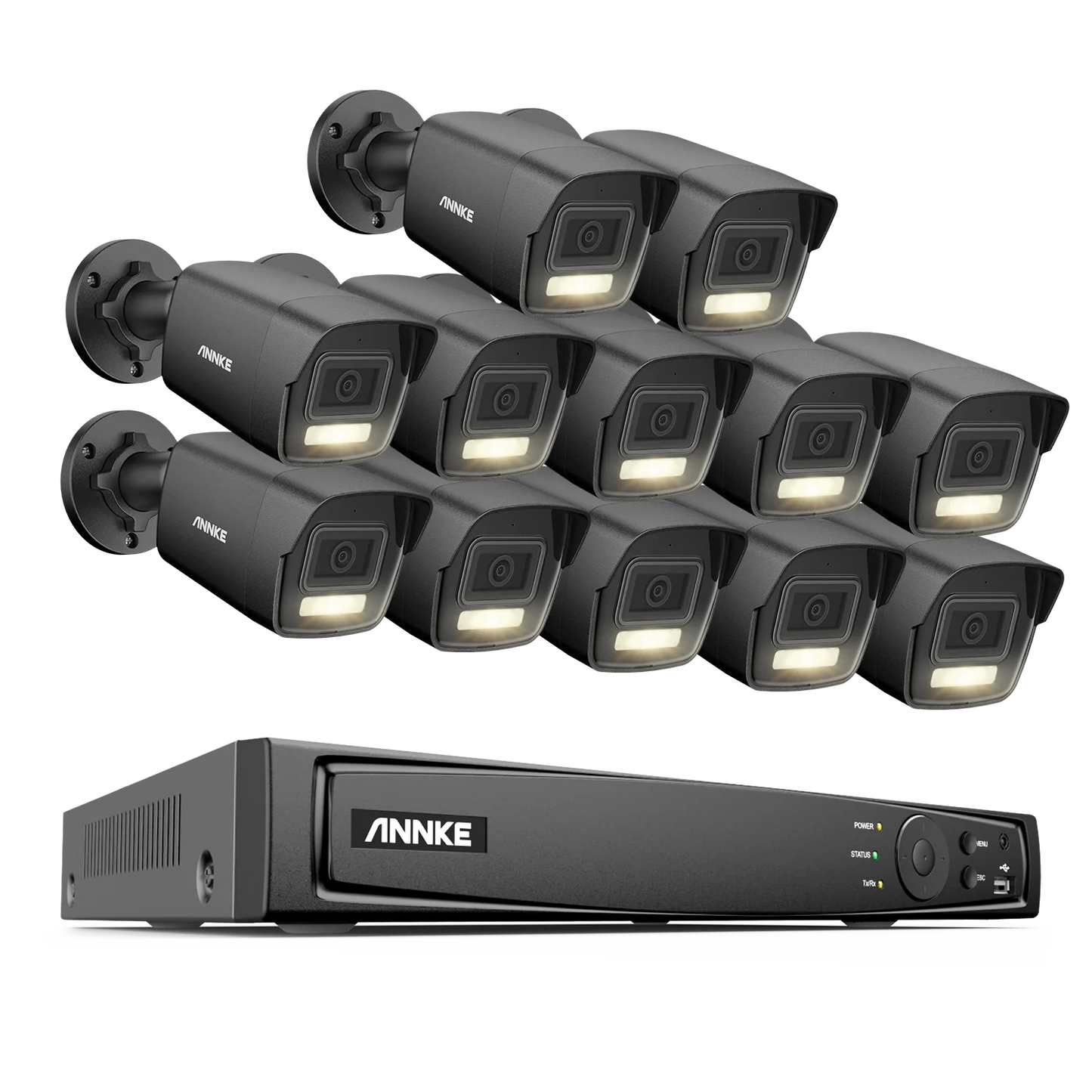

16CH NVR +12Pcs Camera

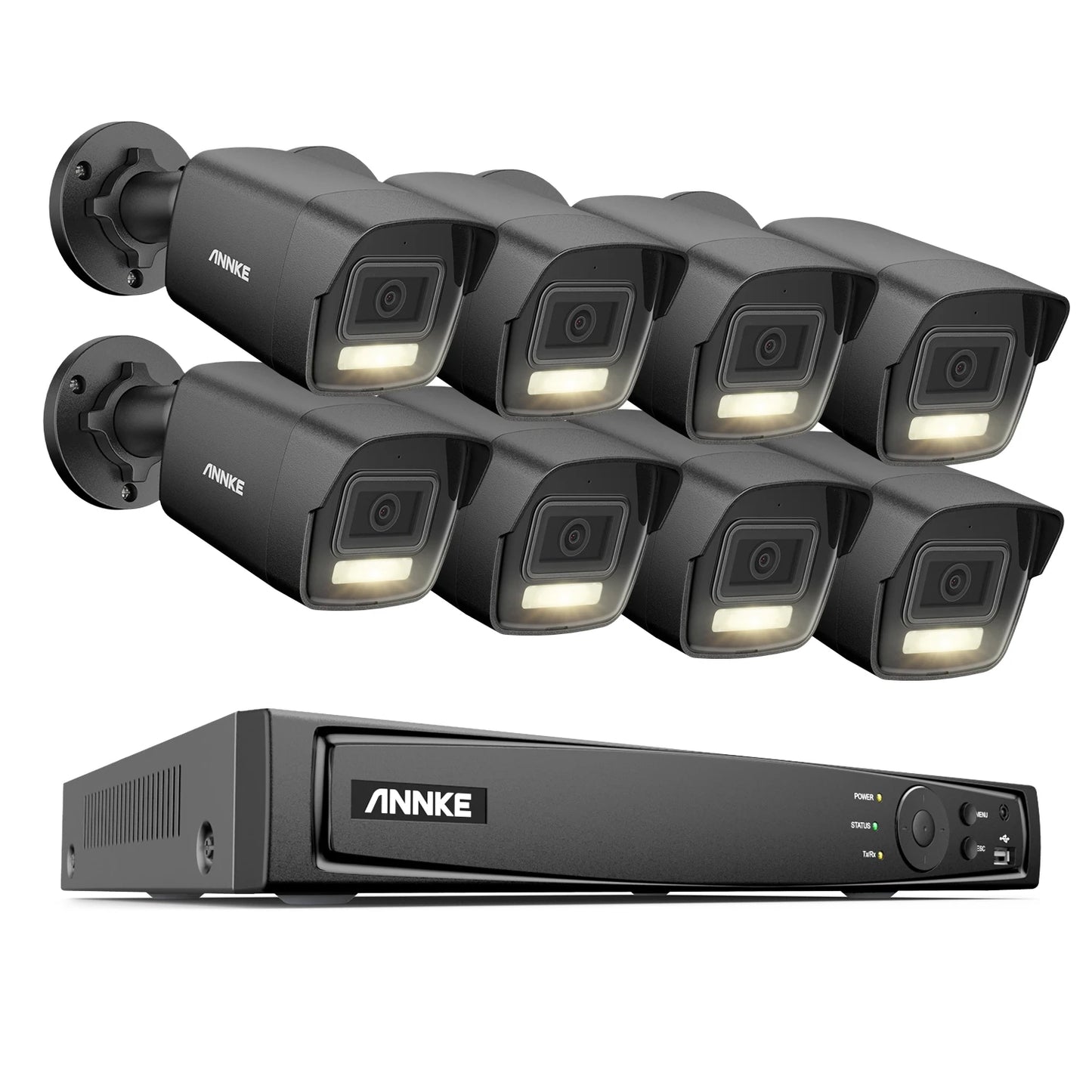

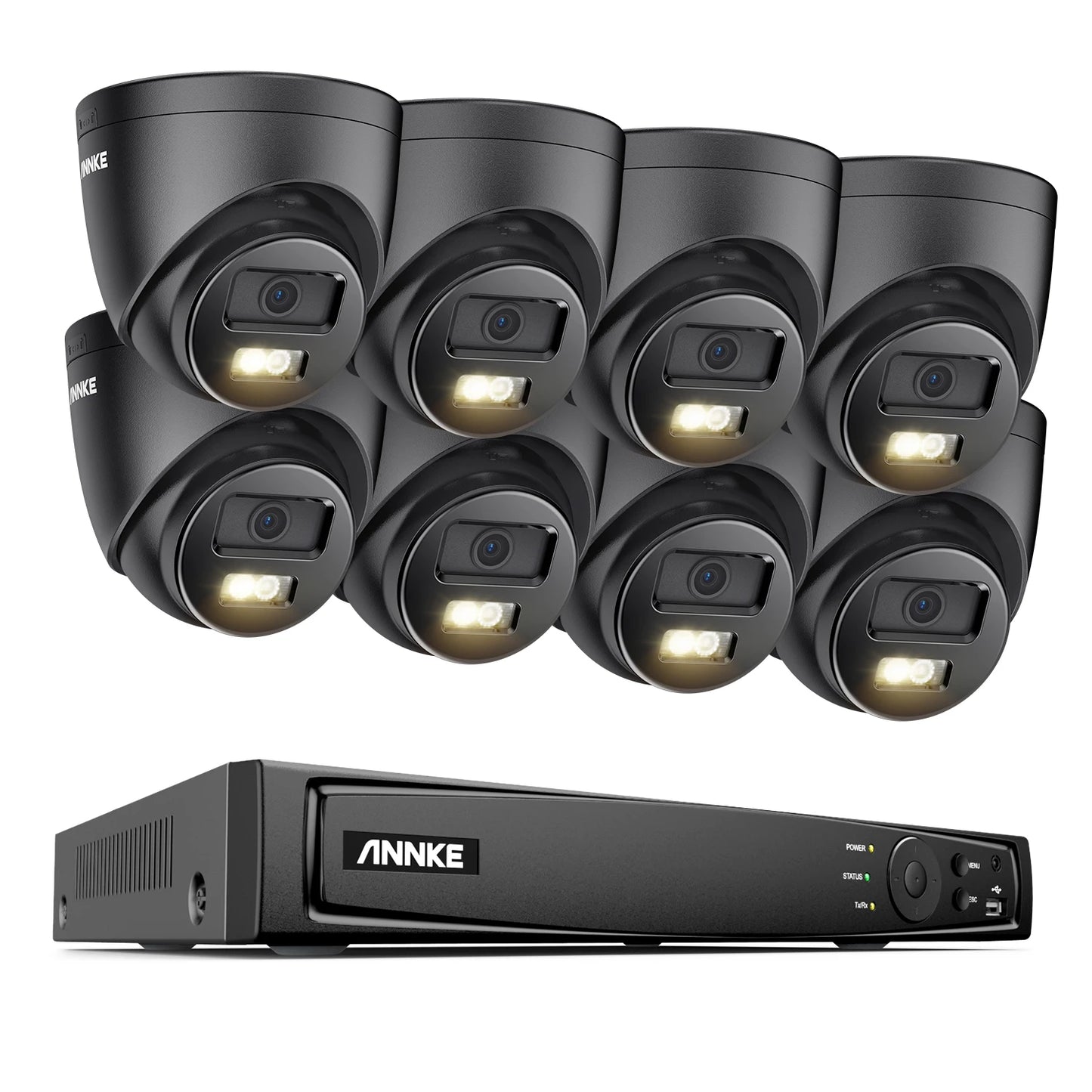

16CH NVR +8Pcs Camera
NVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
16CH PoE |
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/Outgoing Bandwidth |
160/80 M |
|
Max. Recording Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max. Playback Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max. Playback Channel |
16CH |
|
Max. Playback Capacity |
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
2 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity for each disk |
|
|
Network Interface |
RJ45 X1 (10/100/1000 M) |
PoE |
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB |
2X USB 2.0 |
|
Smart Function |
Deep learning |
16-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
AC 100-240 V |
Power Consumption |
≤15 W (Without HDD and PoE) |
|
PoE: Max. 25.5W for Single Port | ||
Working Temperature |
14 °F — 131 °F/-10 °C — 55 °C |
|
Dimensions (W X H X D) |
15.2” X 12.4” X 2.0”/385 X 315 X 52 mm |
|
Weight (Without Hard Disk) |
6.6 lbs./3 kg |
|
IPCamera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version 18.12 |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
Weight |
0.6 lb./270 g |
|
