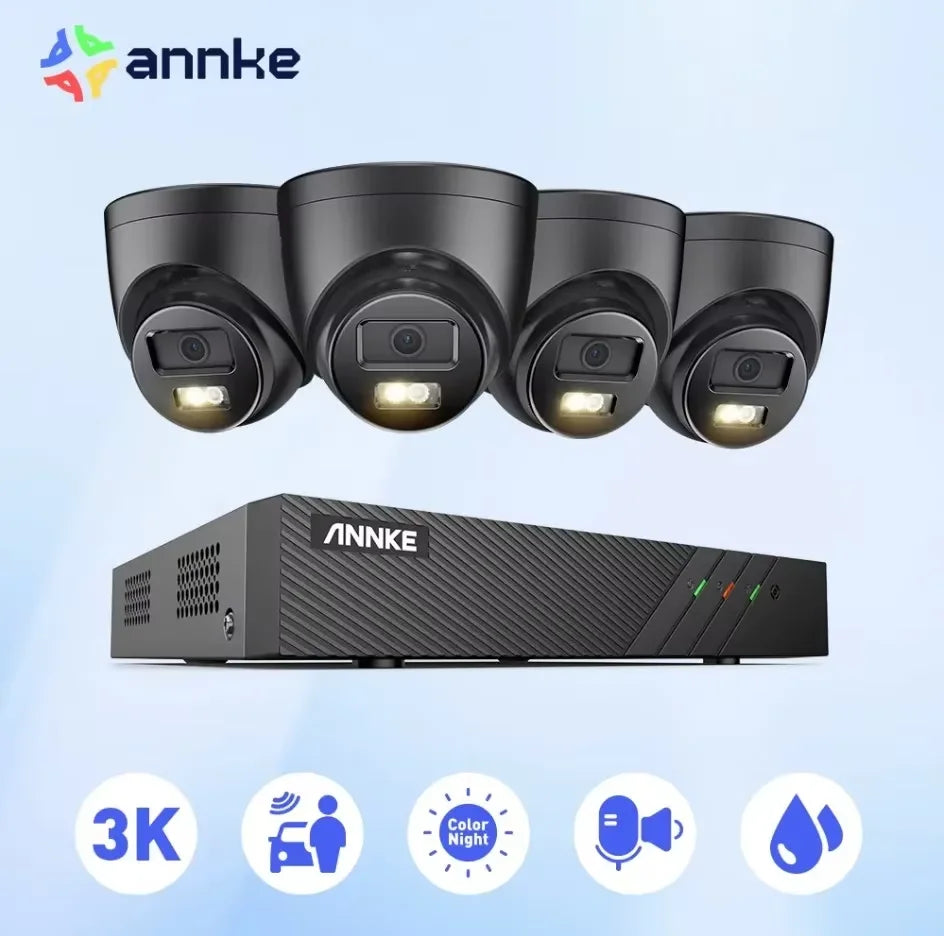

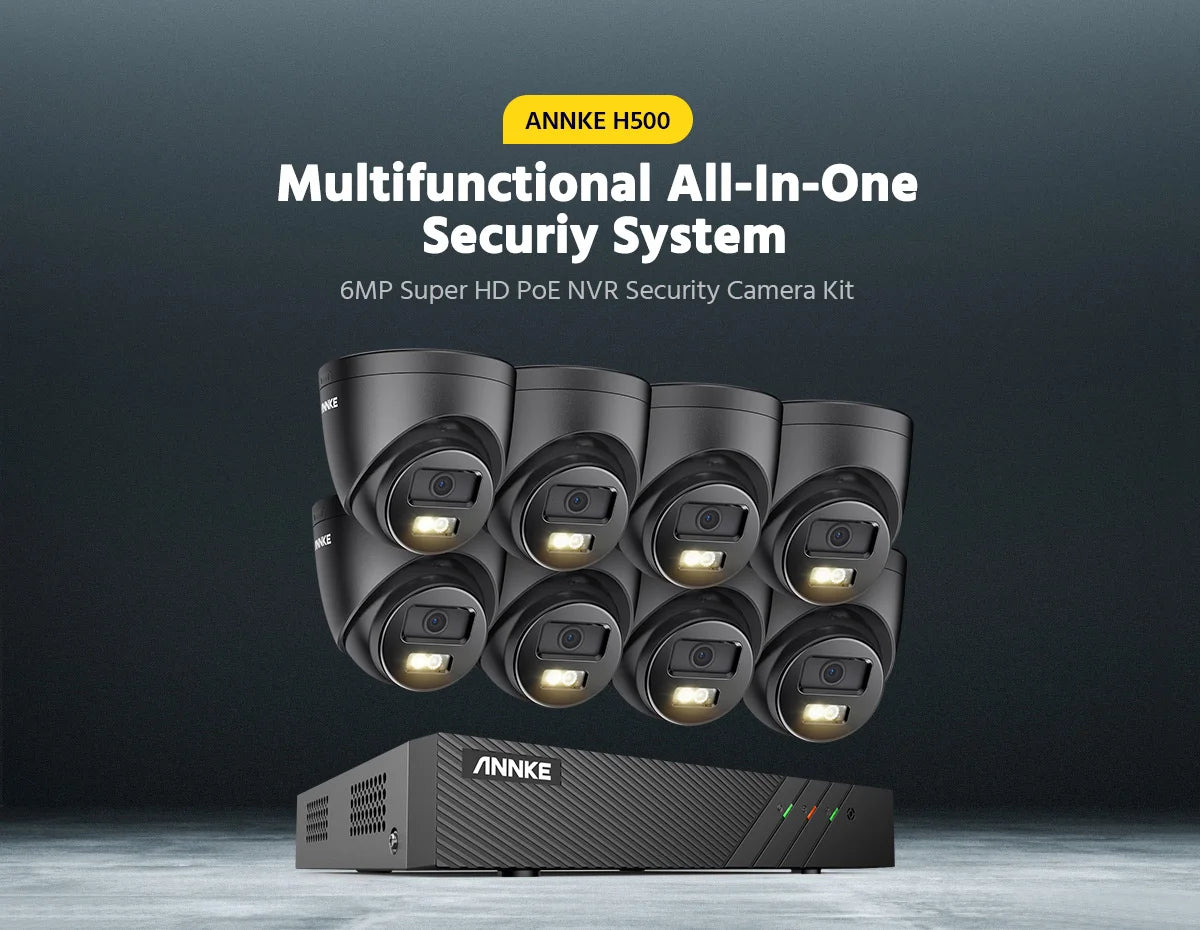

ANNKE 3K 6MP Ultra HD POE Video Surveillance System 8CH NVR Recorder 3K Security Cameras CCTV Kit Smart Dual Lights Ip camera
ANNKE 3K 6MP Ultra HD POE Video Surveillance System 8CH NVR Recorder 3K Security Cameras CCTV Kit Smart Dual Lights Ip camera
SPECIFICATIONS
Audio Input: Built-in Microphone, record with audio
Brand Name: ANNKE
Cable Length: 30m,18m
Features: poe camera kit
Features 5: poe security camera kit
Features 1: Video Surveillance
Features 2: Video camera
Features 3: Video surveillance kit
Features 4: recorder surveillance camera
Hign-concerned Chemical: None
IP Video Input: 8CH POE
Lens: 2.8 mm
Max Playback Channel: 8CH
Model Number: N98PBL+I51EH
Motion detection 2.0: Supoort, include Human & Vehicle detection
Origin: Mainland China
PCS of Camera: 2PCS,4PCS,8PCS
Resolution: 5MP
TV System: NTSC,PAL
Video Input: 8 Channel
features: Support PoE &DC12V
features 1: 3K IR Network Camera
features 2: 8MP video recorder

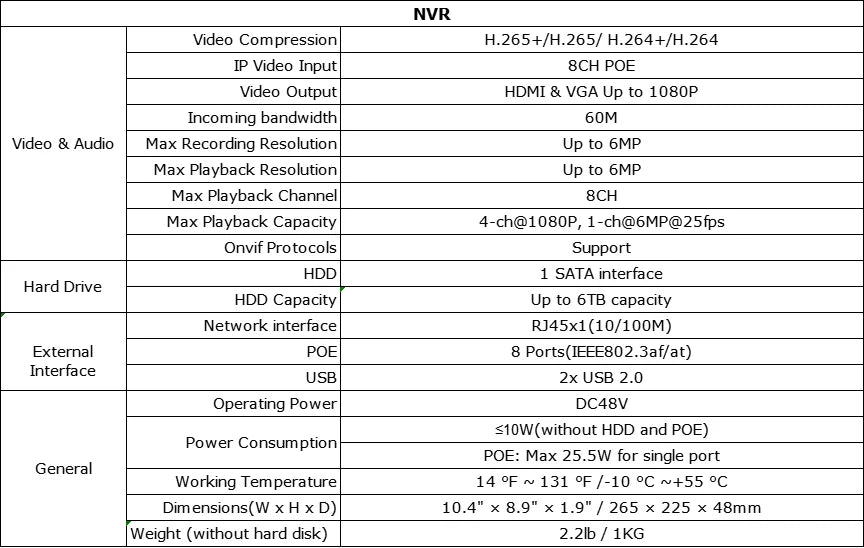

NVR Key features:
· 6MP high definition Real-time live viewing, recording&playback
· Up to 8 channel IP camera connectable with built-in PoE inputs

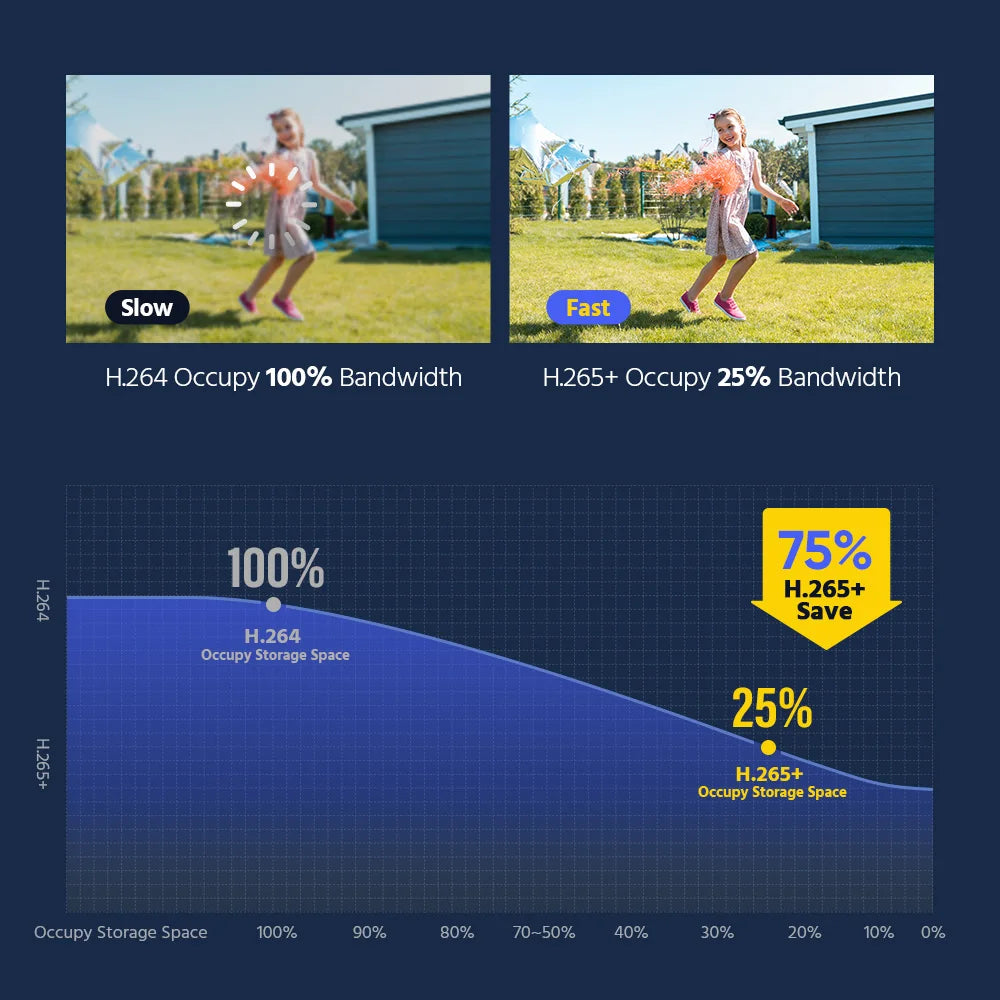

· Advanced H.265+ compression effectively reduces the storage space by up to 75%
· Smart playback to improve the playback efficiency
· Supports iPhone、iPad、Android mobile remote monitoring
· Annke vision for easy remote monitoring

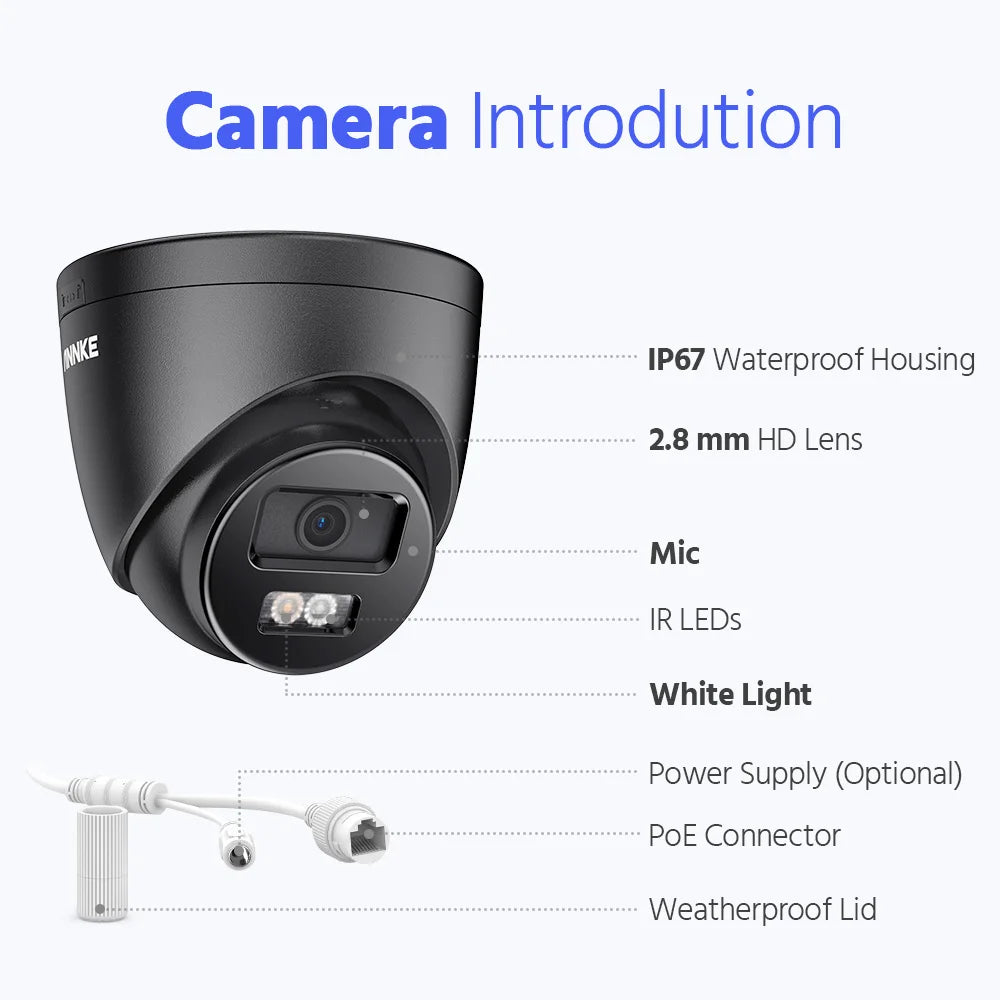

CAMERA Key features:
★ 3K IR Network Camera with 16:9 image scale
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology

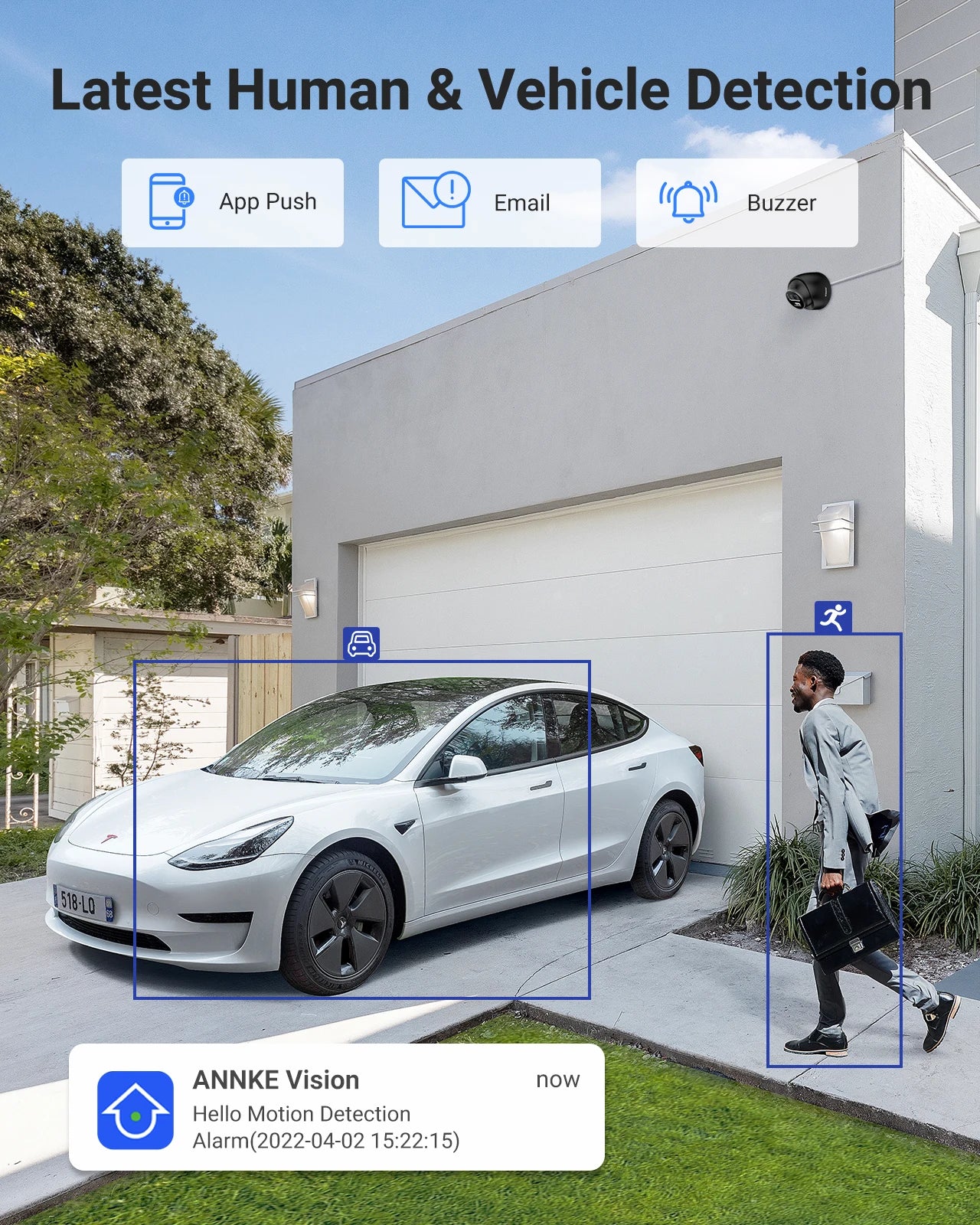

★ Motion detection 2.0 with human & Vehicle Detection

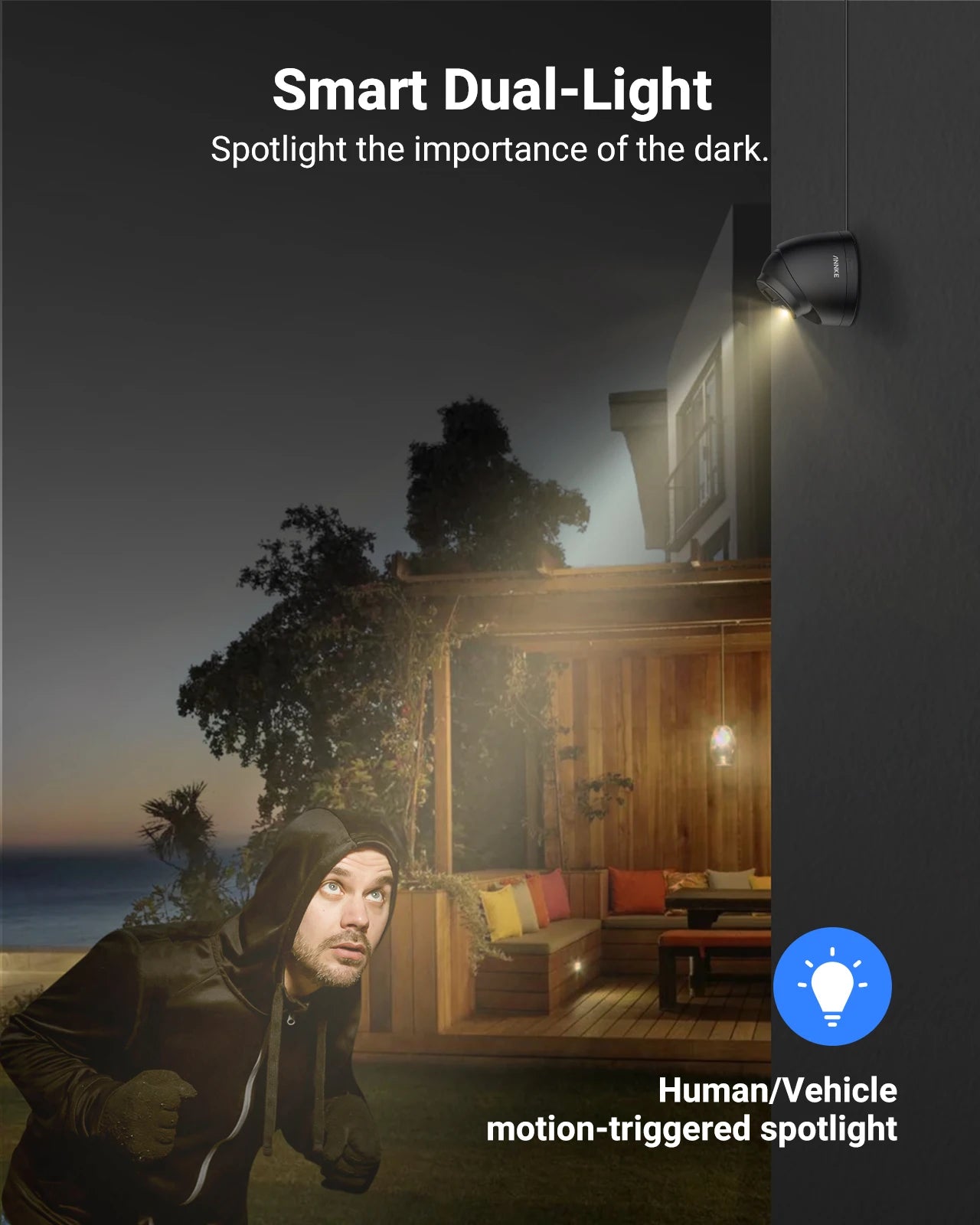

★ Smart Dual-Light: advanced technology with long range
★ Clear day and night vision with 3D DNR and 120DB WDR

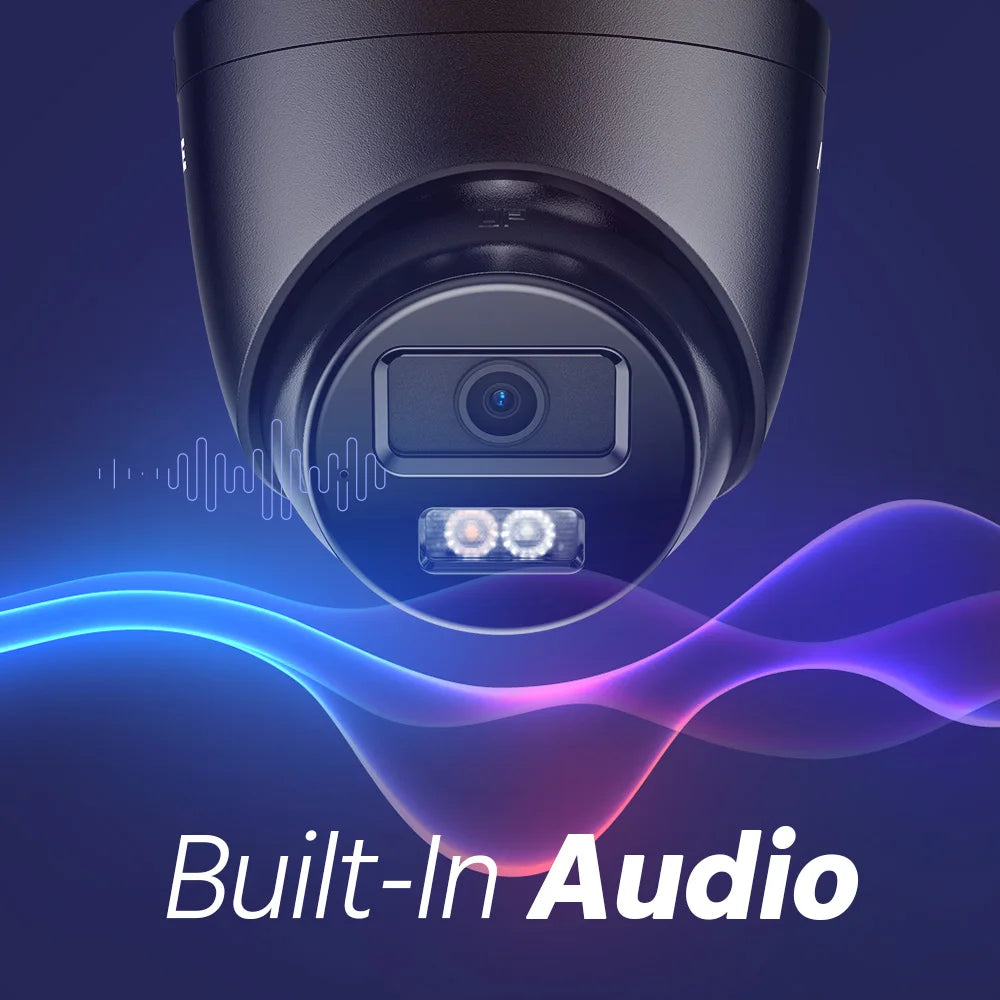

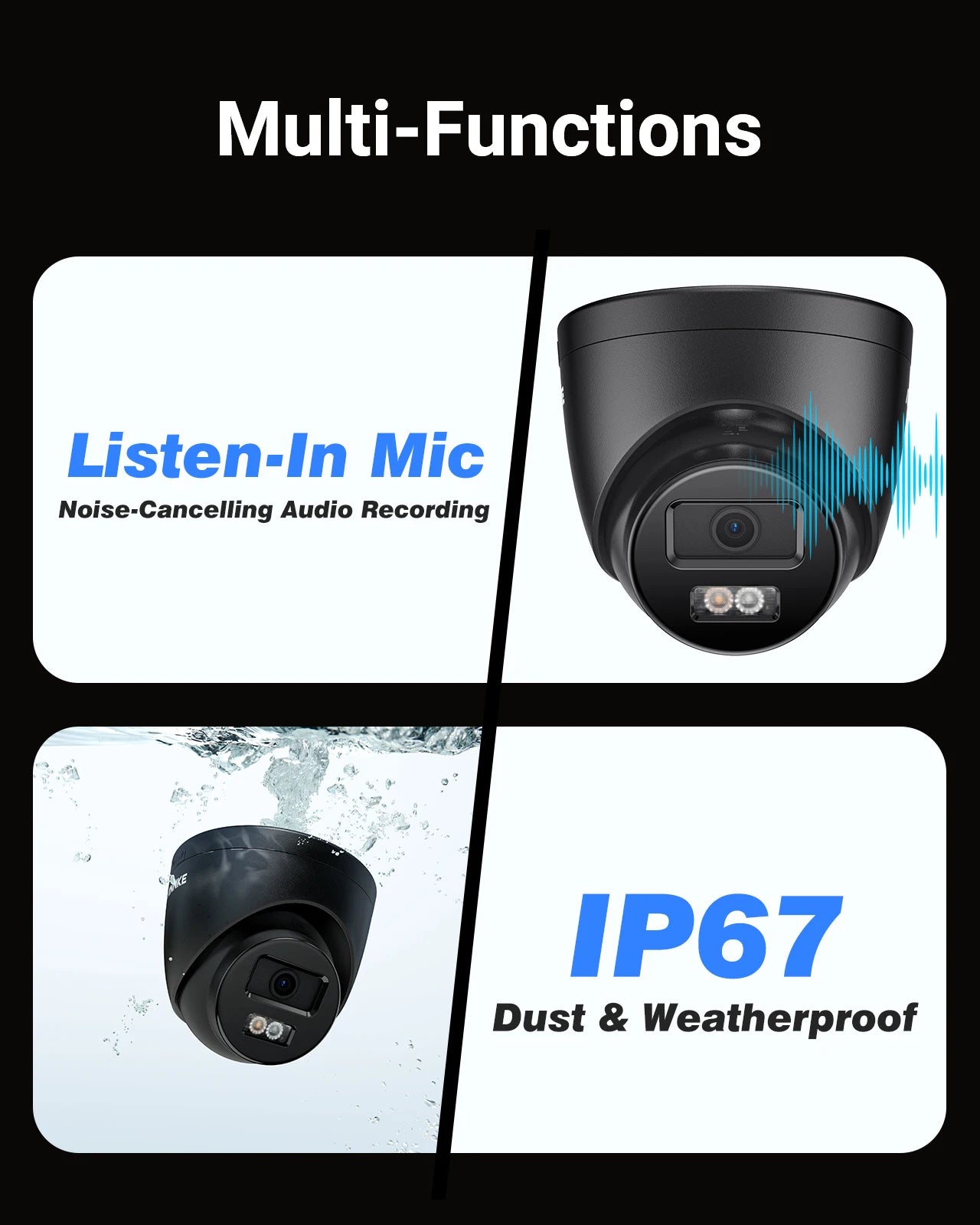

★ Built-in microphone for real-time audio security
★ Support on-board storage up to 256 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
NVR Key features:
· 6MP high definition Real-time live viewing, recording&playback
· Up to 8 channel IP camera connectable with built-in PoE inputs
· Advanced H.265+ compression effectively reduces the storage space by up to 75%
· Smart playback to improve the playback efficiency
· Supports iPhone、iPad、Android mobile remote monitoring
· Annke vision for easy remote monitoring
CAMERA Key features:
★ 3K IR Network Camera with 16:9 image scale
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Smart Dual-Light: advanced technology with long range
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 256 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V

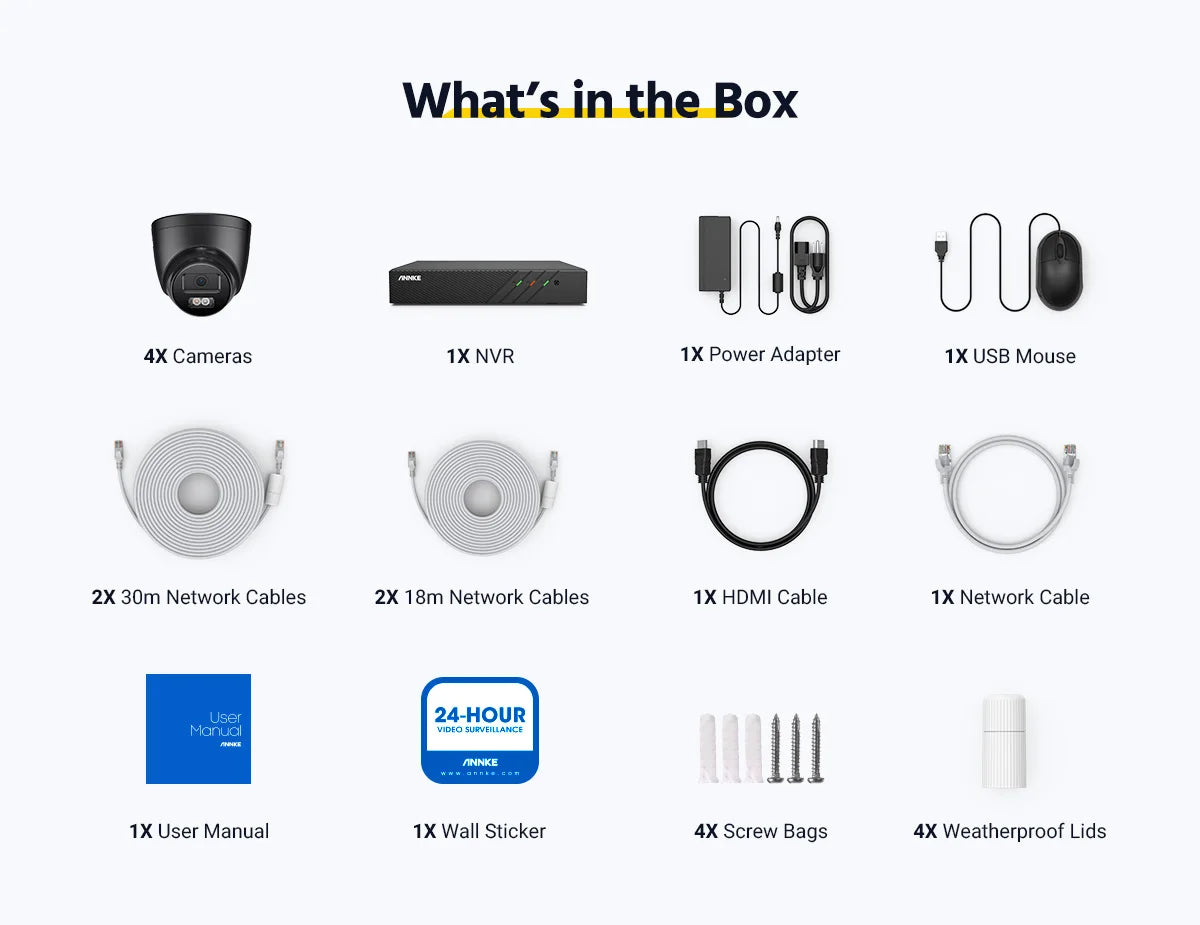

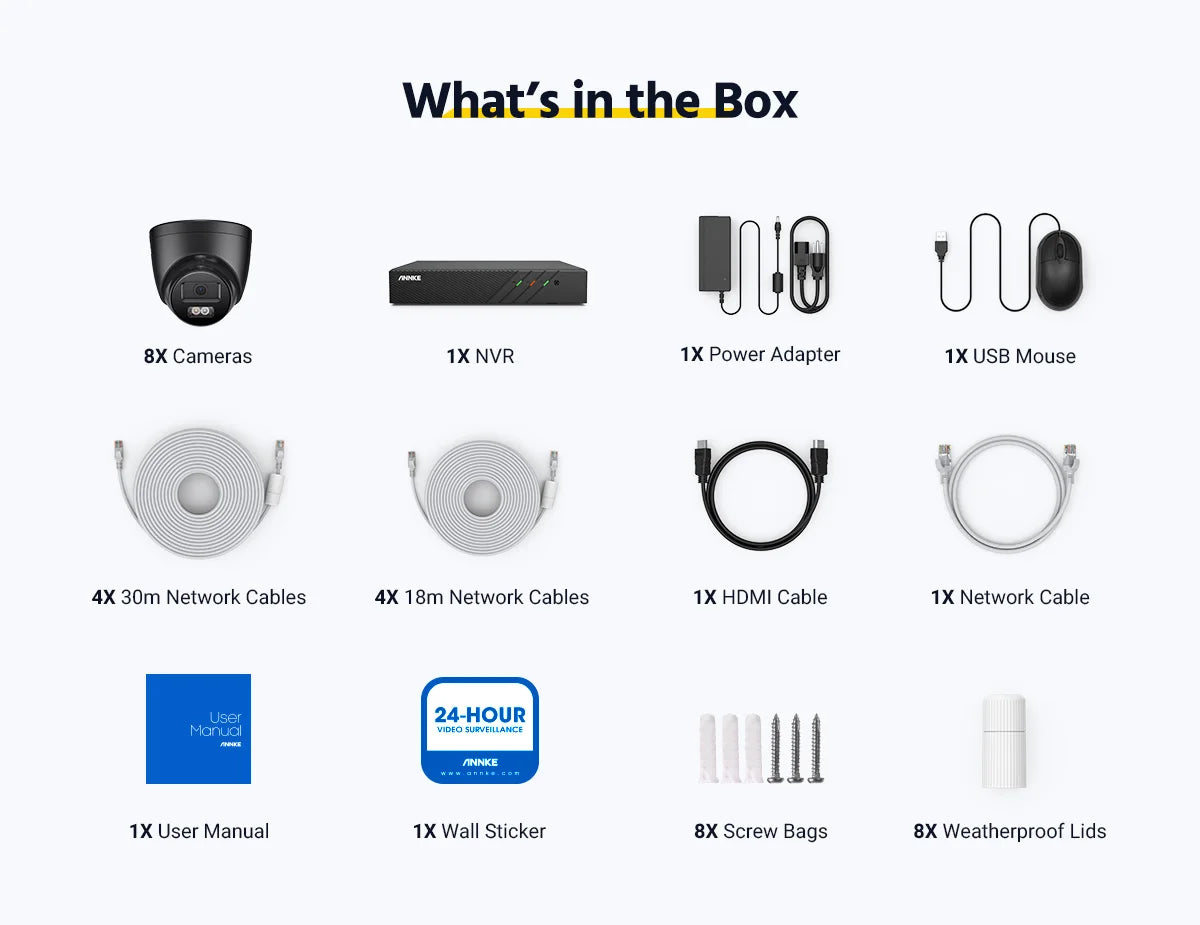

If you choose 2pcs camera, it will be shipped without wires
IP Camera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |

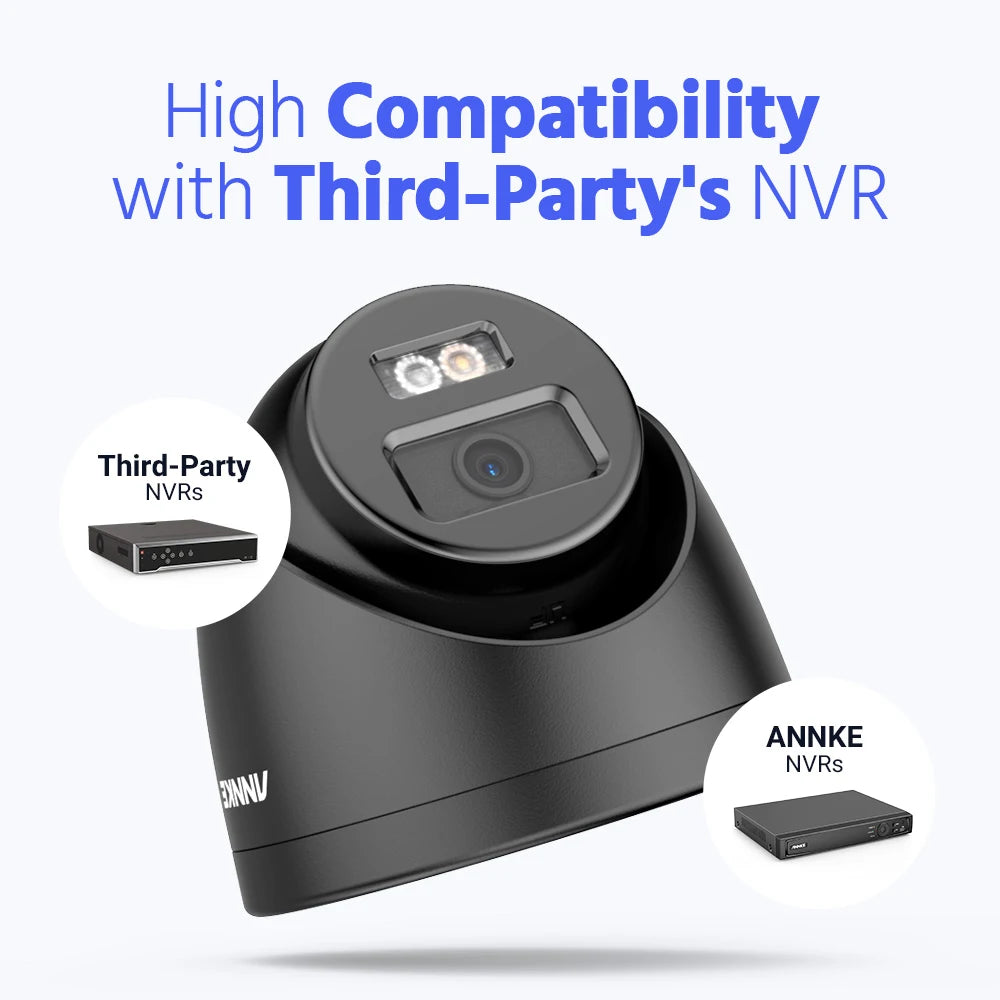

Open Network Video Interface Version 18.12 |
|

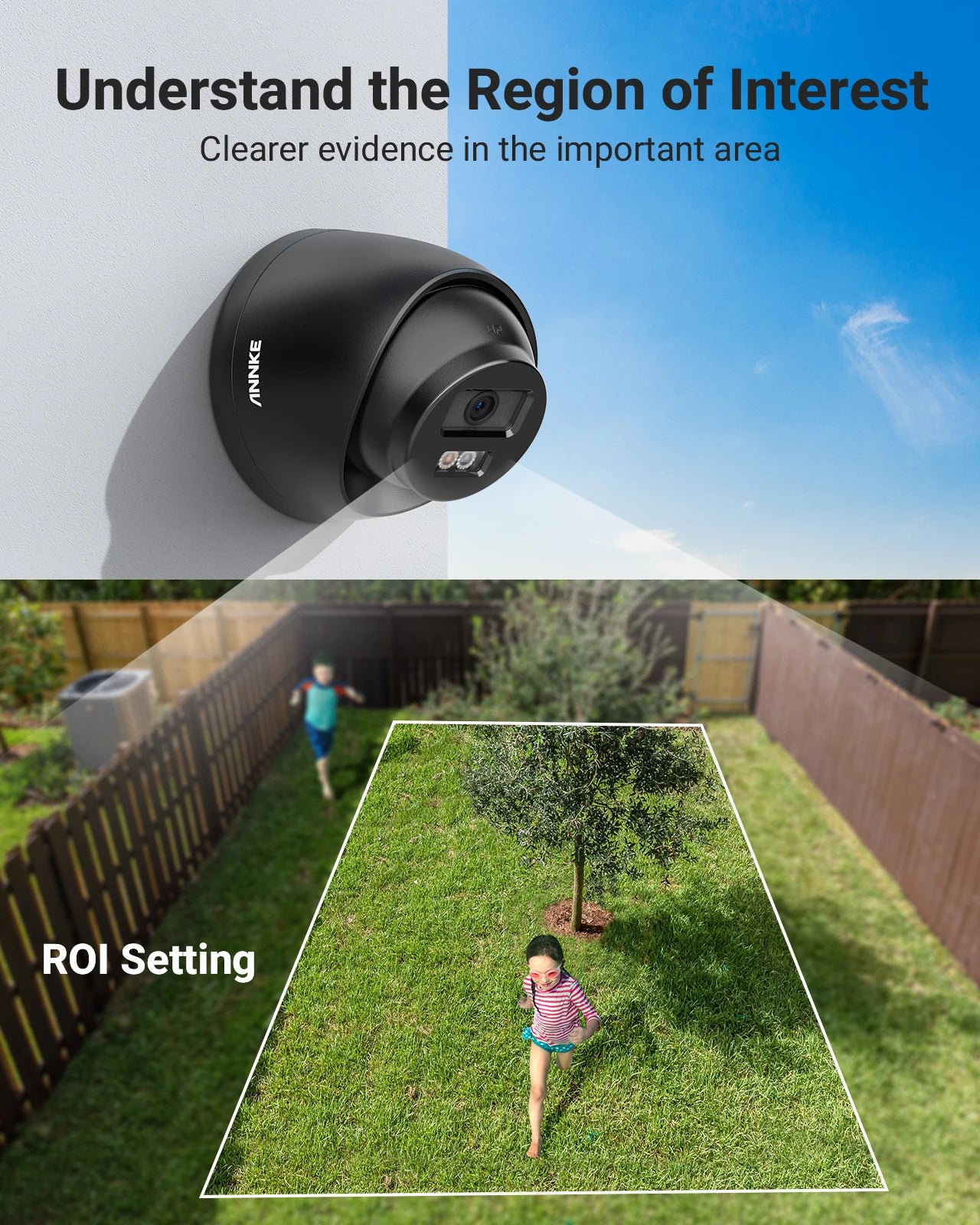

Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
Weight |
0.6 lb./270 g |
|
