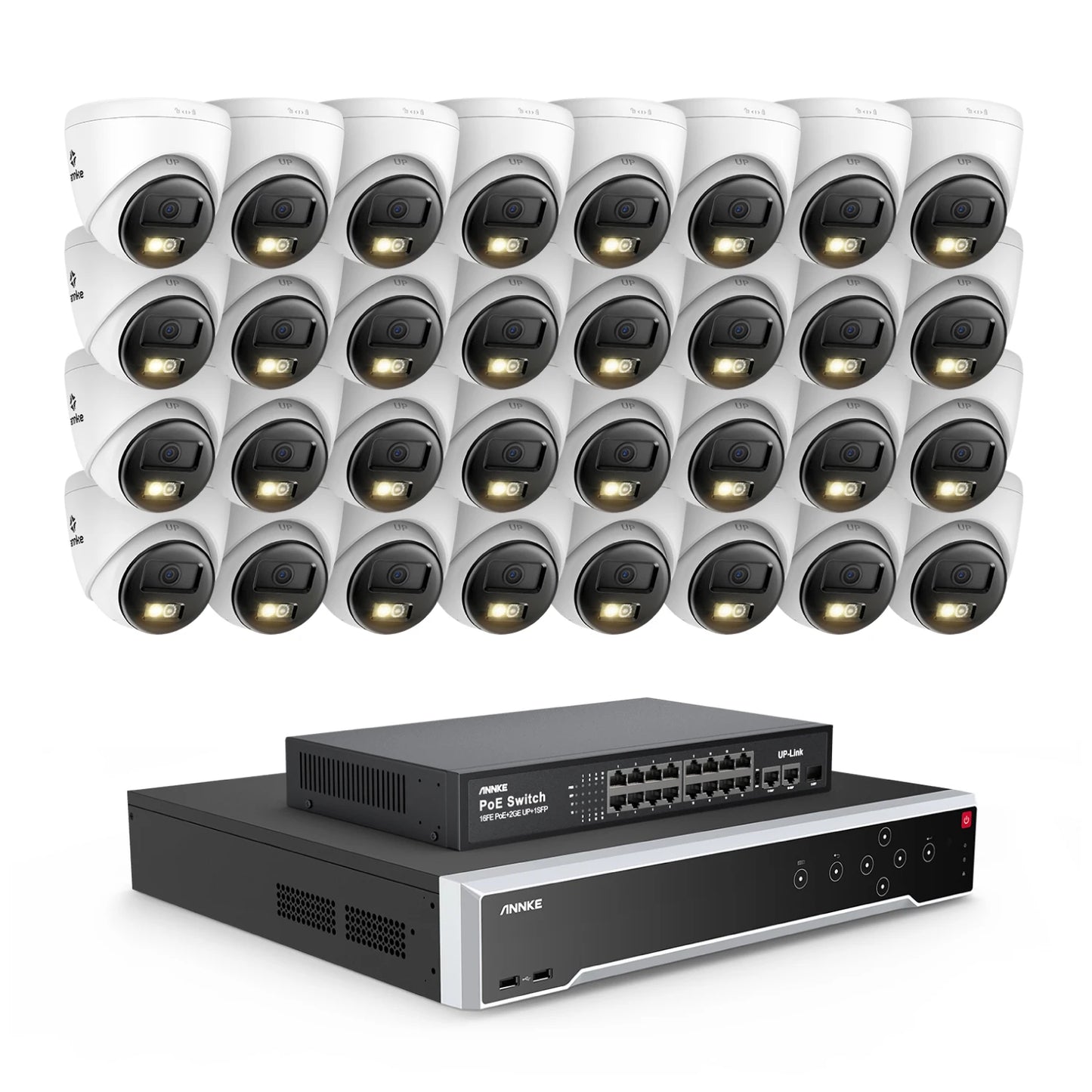

NVR

Video & Audio

Decoding Format

H.265+/H.265/H.264+/H.264

IP Video Input

32 Channel (Include 16 Channel PoE)

Video Output

HDMI up to 4K, VGA up to 1080p, CVBS

Video output mode

HDMI/VGA independent output

Audio Input/Output

1/1 RCA

Incoming/outgoing Bandwidth

256/160 Mbps

Max Recording Resolution

Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)

Max Playback Resolution

Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)

Max Playback Channel

16CH

Motion Detection 2.0 by NVR

All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video
analysis for human and vehicle recognition to reduce false alarm

Motion Detection 2.0 by Camera

All channels

Facial Recognition

Face picture comparison, human face capture, face picture search

Decoding Capability

AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

Network protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF

Remote Connection

128

Smart Event

Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA(Need IP camera support)

Hard Drive

HDD

4 SATA Interface

HDD Capacity

Up to 10 TB Capacity for Each HDD(40 TB total)

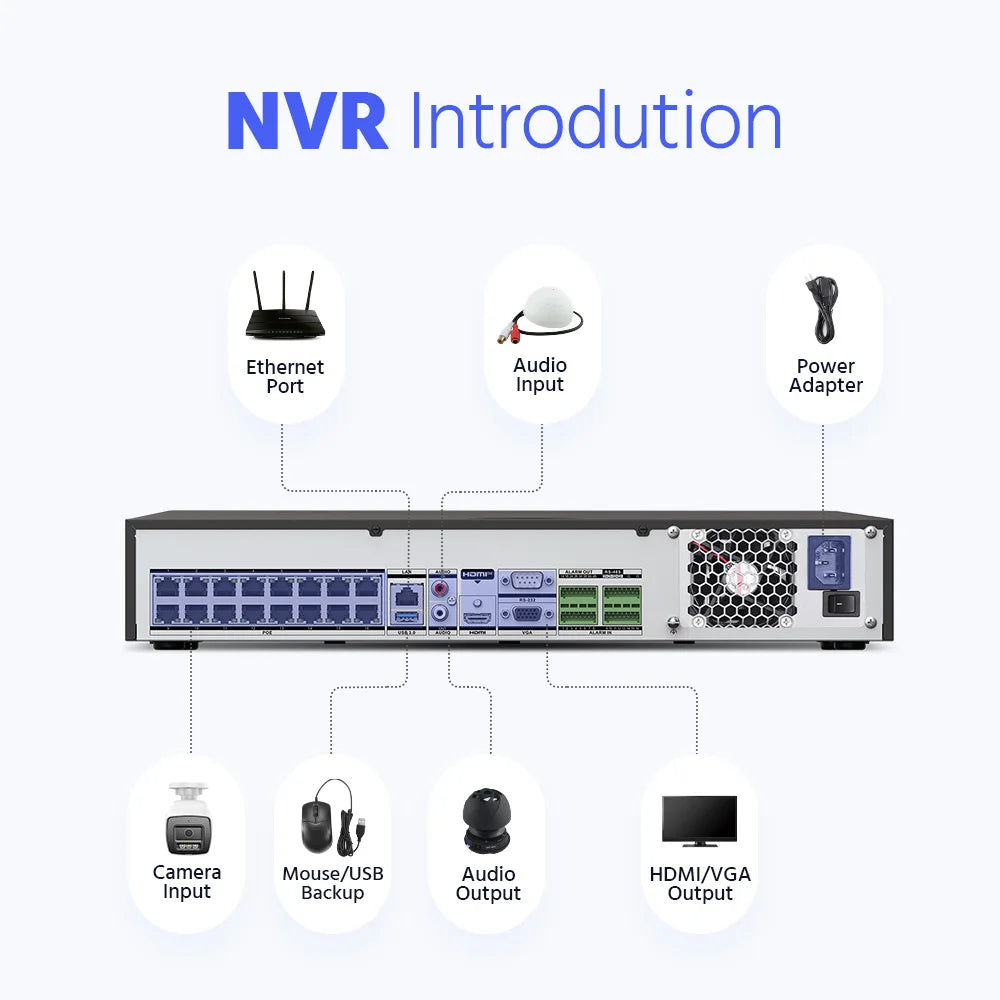

External Interface

Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

16, IEEE 802.3af/at, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Alarm Input/Output

16/4

Serial Interface

2 RS-485 (Half-Duplex), 1 RS-232

USB

Front Panel: 2X USB 2.0; Rear Panel: 1X USB 3.0

General

Operating Power

100-240V AC

Power Consumption

≤ 20 W(without HDD and PoE off)

Working Temperature

14 °F — 131 °F/-10 °C — +55 °C

Dimensions (W X H X D)

445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")

Weight (Without Hard Disk)

≤11 lbs. (5 kg)

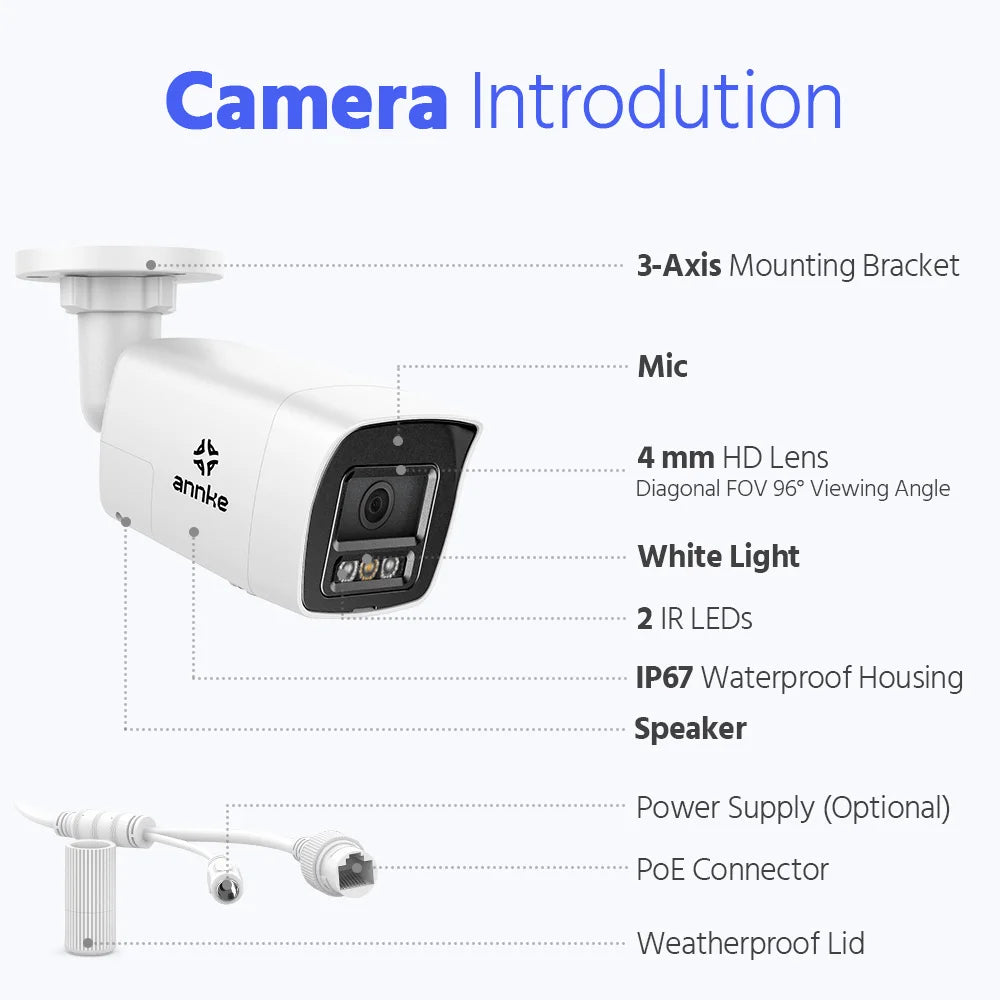

IP Camera

Camera

Image Sensor

1/2.4" Progressive Scan CMOS

Max resolution

3840*2160(8MP)

Main Stream

50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Substream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps - 16 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Input

Built-in Microphone, record with audio

Audio Output

Built-in Speaker, max. sound pressure level: 10 cm: 95 dB

Lens

4 mm

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of View

Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Supplement Light Type

Smart Dual-Light, IR, White Light

Supplement Light Range

Up to 30 m

Motion detection 2.0

Supoort, include Human & Vehicle detection

Flashing Light Alarm

High/Medium/Low Frequency

Audio Alarm

Warning/Prompt/Custom Audio

Image Enhancement

BLC, HLC, 3D DNR

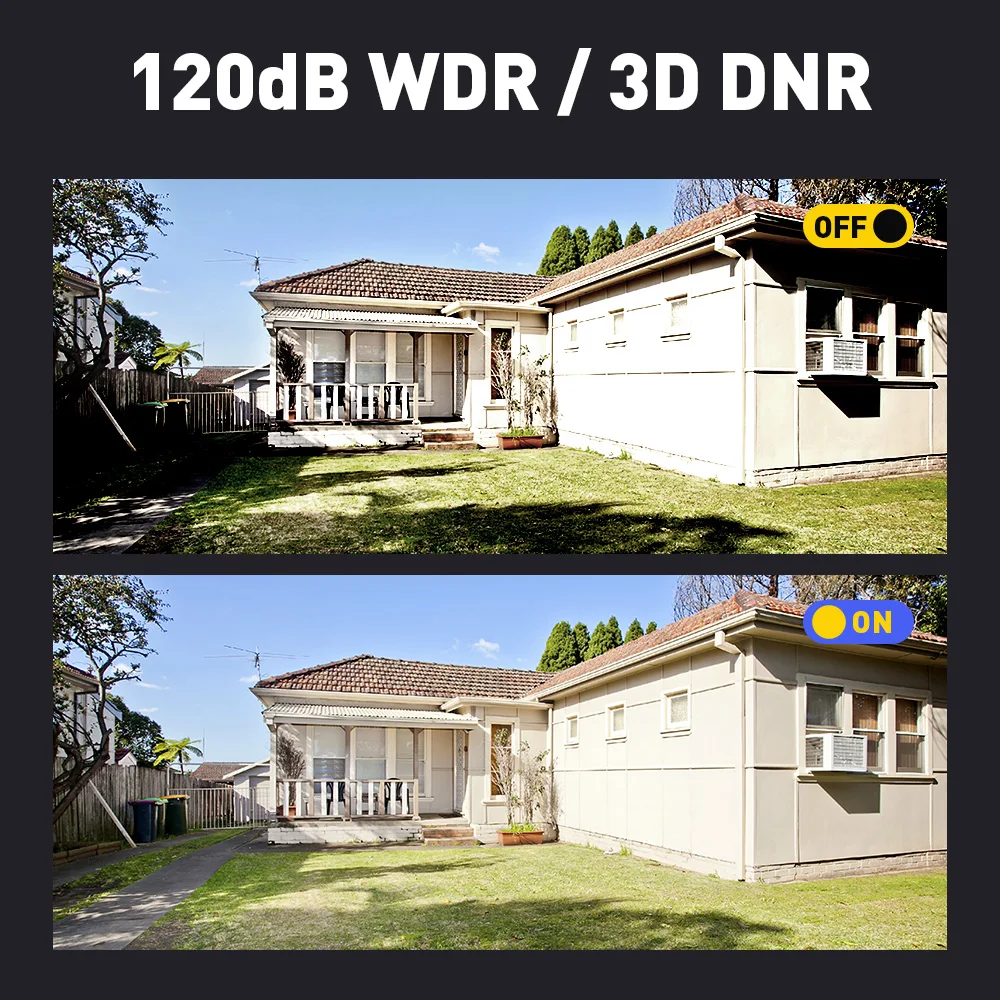

Wide Dynamic Range

120 dB WDR

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

API

Open Network Video Interface Version (Profile S, Profile T, Profile G)

Region of Interest (ROI)

1 fixed region for main stream

Privacy Mask

4 programmable polygon privacy masks

General Function

Rotate mode, mirror, password protection, remote access

Ethernet

1 RJ45 10 M/100 M self-adaptive Ethernet port

General

Housing

Metal & Plastic

Color

White

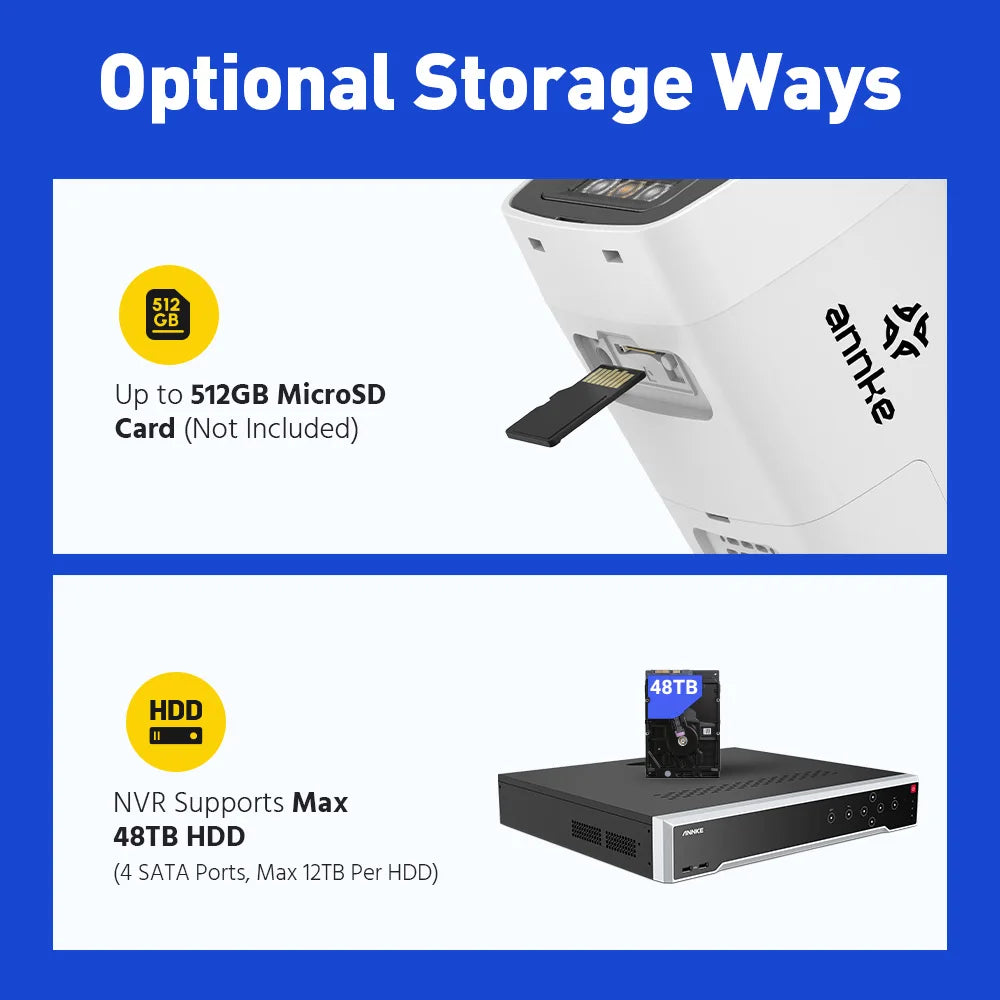

Storage

Built-in microSD/SDHC/SDXC Slot, up to 512 GB

Hardware Reset

Yes

Operating Power

DC 12 V± 25%, max. 8 W; PoE (802.3af), max. 9.5 W

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

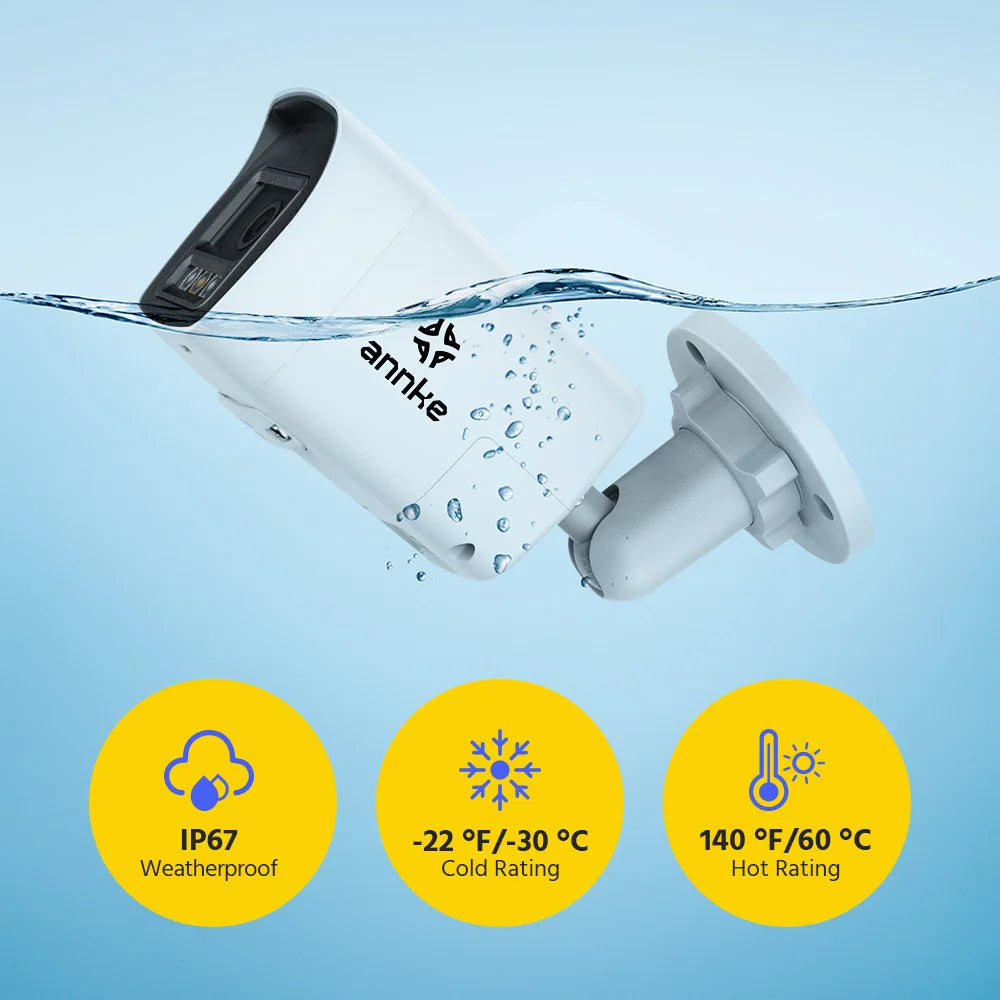

Interface Protection

IP67

Dimension (L X W X H)

179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")

Weight

0.6 lb./285 g
